Norsat 9000 Series 9000XI4ECN-4 Ka-Band LNB
¥4,048.00
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 y
Description
Norsats Low Noise Blocks (LNBs) provide signal reception for satellite communications around the world. We offer premium performance and reliability in the smallest form factor possible. All of our standard Ka-Band LNBs are backed by a 3 year warranty and nearly forty years of experience as the industrys leading provider of high performance LNBs. LNB, KA-PLL, QUAD,17.20-21.20GHZ, EXTREF, ISO, NF:2.0DB, N-CONN, NORSAT LOGO
| KEY SPECIFICATIONS | |
| Product Family | 9000 Series |
| Band | Ka-Band |
| LO Type | External |
| # of onboard LOs | Quad-band |
| LO Stability | Phase Locked to External Reference |
| Noise Figure | 2.0 dB |
| Input Frequency – Band 1 | Ka-Band: 17.20 – 18.20 GHz |
| Input Frequency – Band 2 | Ka-Band: 18.20 – 19.20 GHz |
| Input Frequency – Band 3 | Ka-Band: 19.20 – 20.20 GHz |
| Input Frequency – Band 4 | Ka-Band: 20.20 – 21.20 GHz |
| Output Frequency 1 | L-Band: 950 – 1950 MHz |
| Output Frequency 2 | L-Band: 950 – 1950 MHz |
| Output Frequency 3 | L-Band: 950 – 1950 MHz |
| Output Frequency 4 | L-Band: 950 – 1950 MHz |
| RF SPECIFICATIONS | |
| LO Frequency 1 | 16.25 GHz |
| LO Frequency 2 | 17.25 GHz |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 13V /22 KHz tone |
| Control Signal 3 | 18 V |
| Control Signal 4 | 18V /22 KHz tone |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 62 dB typ |
| Input VSWR | 1.3 : 1 |
| Output VSWR | 2.0 : 1 |
| Output P1dB compression point | 10 dBm |
| ELECTRICAL SPECIFICATIONS | |
| Power Requirements | 12 – 24 V |
| Current Drain | 350 mA |
| INTERFACE SPECIFICATIONS | |
| RF Input Connector | WR-42 waveguide grooved |
| RF Output Connector | N-50 Ohm |
| ENVIRONMENTAL SPECIFICATIONS | |
| Temperature – Operational | -40 to +60°C |
| Temperature – Storage | -40 to +80°C |
| PHYSICAL SPECIFICATIONS | |

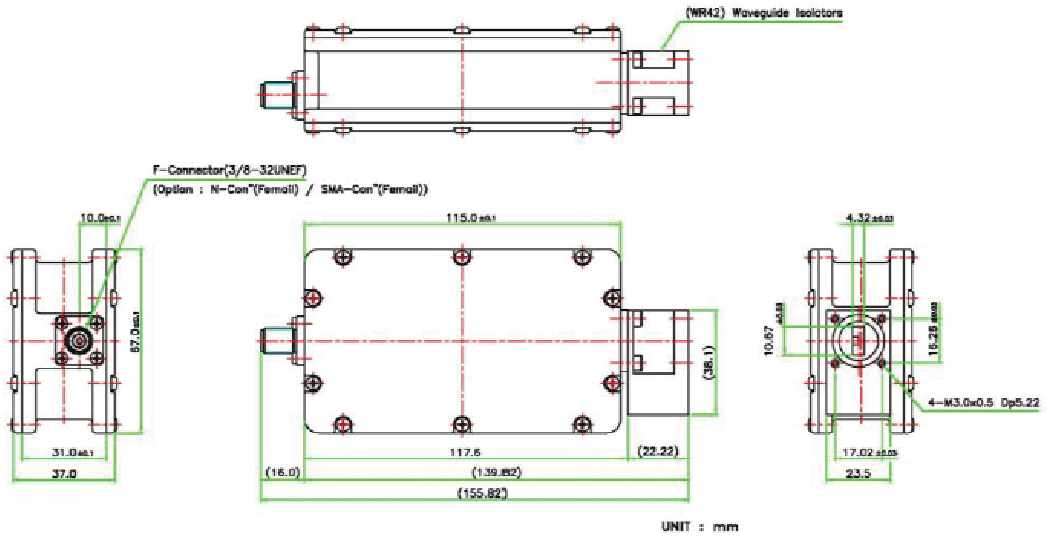

| Dimensions (L x W x H) | 156 x 67 x 37 mm |
| Weight | 550 g |
Additional information
| Band | Ka-Band |
|---|---|
| LO Frequency 1 | 16.25 GHz |
| LO Stability | Phase Locked to External Reference |
| LO Type | External |
| Input VSWR | 1.3 : 1 |
| Output VSWR | 2.0 : 1 |
| Power Requirements | 12 – 24 V |
| RF Input Connector | WR-42 waveguide grooved |
| LO Frequency 2 | 17.25 GHz |
| Control Signal 1 | 13 V |
| Control Signal 2 | 13V /22 KHz tone |
| LO Frequency 3 | 18.25 GHz |
| LO Frequency 4 | 19.25 GHz |
| Control Signal 3 | 18 V |
| Product Family | 9000 Series |
| # of onboard LOs | Quad-band |
| Noise Figure | 2.0 dB |
| Input Frequency - Band 1 | Ka-Band: 17.20 – 18.20 GHz |
| Input Frequency - Band 2 | Ka-Band: 18.20 – 19.20 GHz |
| Input Frequency - Band 3 | Ka-Band: 19.20 – 20.20 GHz |
| Output Frequency 1 | L-Band: 950 – 1950 MHz |
| Output Frequency 2 | L-Band: 950 – 1950 MHz |
| Output Frequency 3 | L-Band: 950 – 1950 MHz |
| Phase Noise @ 1KHz offset | Depends on External Reference |
| Phase Noise @ 10KHz offset | Depends on External Reference |
| Phase Noise @ 100KHz offset | Depends on External Reference |
| Conversion Gain | 62 dB typ |
| Output P1dB compression point | 10 dBm |
| Current Drain | 350 mA |
| RF Output Connector | N-50 Ohm |
| Temperature - Operational | -40 to +60°C |
| Dimensions (L x W x H) | 156 x 67 x 37 mm |
| Weight | 550 g |
| Control Signal 4 | 18V /22 KHz tone |
| Input Frequency - Band 4 | Ka-Band: 20.20 – 21.20 GHz |
| Output Frequency 4 | L-Band: 950 – 1950 MHz |
| Temperature - Storage | -40 to +80°C |
