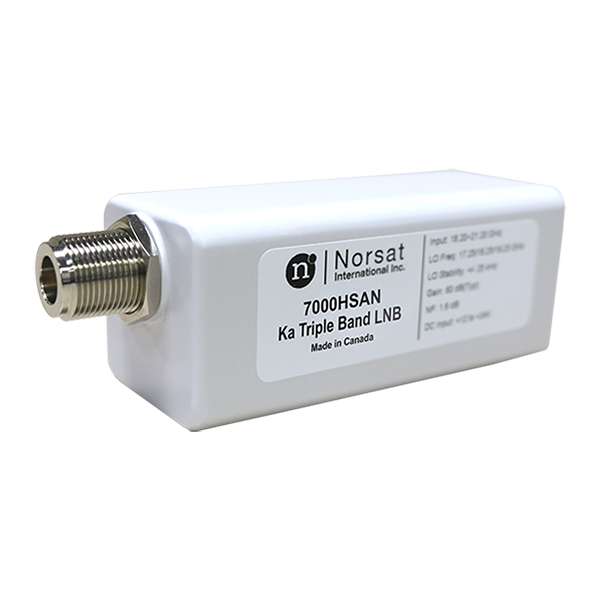

Norsat 7100HTCF 7000 Triple-Band Ka-Band PLL LNB
¥2,000.00
AUTO-REF: Automatically switches to Internal PLL in the absence of an EXT REF 10MHz signal KEY SPECIFICATIONS Band Ka-Band Input Frequency Band 1 17.90 – 18.30 GHz Input Frequency Band 2 18.30 – 19.30 GHz Input Frequency Band 3 19.30 – 20.3
Description
AUTO-REF: Automatically switches to Internal PLL in the absence of an EXT REF 10MHz signal
| KEY SPECIFICATIONS | |
| Band | Ka-Band |
| Input Frequency Band 1 | 17.90 – 18.30 GHz |
| Input Frequency Band 2 | 18.30 – 19.30 GHz |
| Input Frequency Band 3 | 19.30 – 20.30 GHz |
| LO Frequency 1 | 16.95 GHz |
| LO Frequency 2 | 17.35 GHz |
| LO Frequency 3 | 18.35 GHz |
| LO Stability | ±10 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 – 1350 MHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| RF SPECIFICATIONS | |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Control Signal 3 | 18V / No Tone |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| ELECTRICAL SPECIFICATIONS | |
| Current Consumption | 450 mA max |
| Power Requirements | +12 to +24V DC |
| INTERFACE SPECIFICATIONS | |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 Waveguide Grooved |
| ENVIRONMENTAL SPECIFICATIONS | |
| Humidity | 0 – 100% |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +70°C |
| Temperature Storage | -45 to +80˚C |
| PHYSICAL SPECIFICATIONS | |
| Product Height | 1.70 in |
| Product Length | 4.67 in |
| Product Weight | 0.4 kg |
| Product Width | 1.72 in |
| ADDITIONAL INFORMATION | |
| Aluminium Content | 0.36 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Weight | 0.48 kg |
| Unit Package Width | 68 mm |
| Warranty | 3 years |
Additional information
| Band | Ka-Band |
|---|---|
| Input Frequency Band 1 | 17.90 – 18.30 GHz |
| LO Frequency 1 | 16.95 GHz |
| LO Stability | ±10 kHz |
| LO Type | PLL |
| Noise Figure Max | 1.5 dB |
| Noise Figure Typ | 1.3 dB |
| Number Of Onboard Los | Triple-Band |
| Output Frequency Band 1 | 950 – 1350 MHz |
| Conversion Gain Max | 65 dB |
| Conversion Gain Min | 55 dB |
| Conversion Gain Typ | 60 dB |
| Gain Flatness (Over Full Band) | ≤ 5 dB p-p max. |
| Input VSWR | 2.5 : 1 max. |
| Output P1db | + 5 dBm min. |
| Phase Noise 1Khz Offset Max | -73 dBc/Hz |
| Phase Noise 10Khz Offset Max | -83 dBc/Hz |
| Phase Noise 100Khz Offset Max | -93 dBc/Hz |
| Current Consumption | 450 mA max |
| Power Requirements | +12 to +24V DC |
| IF Connector | F-Connector |
| RF Input Connector | WR-42 Waveguide Grooved |
| IP Rating | IP 66 |
| Temperature Operational | -40°C to +70°C |
| Product Height | 1.70 in |
| Product Length | 4.67 in |
| Product Weight | 0.4 kg |
| Product Width | 1.72 in |
| Aluminium Content | 0.36 kg |
| Aluminium COO | CN |
| Aluminium Total Value | $ 0.9 |
| Country Of Origin | Made in Canada |
| ECCN Number | EAR99 |
| Ex Works | Richmond, BC, Canada |
| Unit Package Dimensions | 135 x 68 x 48 mm |
| Unit Package Weight | 0.48 kg |
| Warranty | 3 years |
| Temperature Storage | -45 to +80˚C |
| Unit Package Height | 48 mm |
| Unit Package Length | 135 mm |
| Unit Package Width | 68 mm |
| Input Frequency Band 2 | 18.30 – 19.30 GHz |
| LO Frequency 2 | 17.35 GHz |
| Output Frequency Band 2 | 950 – 1950 MHz |
| Control Signal 1 | 13V / No Tone |
| Control Signal 2 | 13V / 22kHz Tone |
| Input Frequency Band 3 | 19.30 – 20.30 GHz |
| LO Frequency 3 | 18.35 GHz |
| Output Frequency Band 3 | 950 – 1950 MHz |
| Tone Frequency | 22 kHz ± 4 kHz |
| Control Signal 3 | 18V / No Tone |
| Humidity | 0 – 100% |
