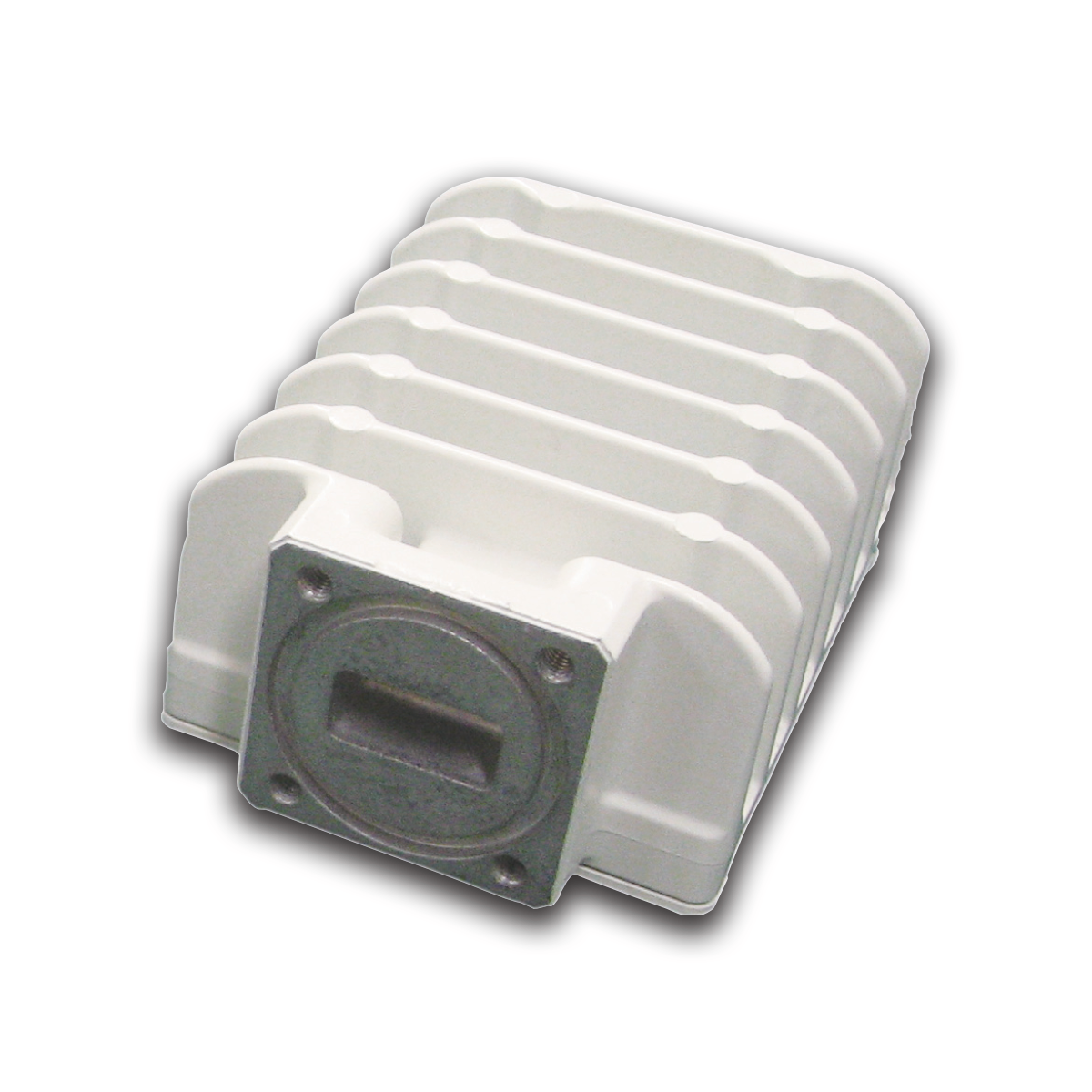

Nisshinbo NJT8302N Standard Ku-band 3W BUC 14.0 – 14.5 GHz
Nisshinbo NJT8302N Standard Ku-Band BUC, 输出功率 3W。 价格请询价。
Description
Nisshinbo NJT8302N Standard Ku-band 3W BUC 14.0 – 14.5 GHz 是 Nisshinbo（日本新日本无线）推出的 Standard Ku 频段 BUC（上变频器），适用于卫星通信上行链路。主要技术参数如下：
| Band | Ku-Band |
| Output Frequency | Ku-Band: 14.00 – 14.50 GHz |
| IF Connector | N-Connector |
| Output RF Frequency Range | 14 to 14.5 GHz |
| Input IF Frequency Range | 950 to 1,450 MHz |
| Maximum IF Input Level (without damage) | +13 dBm max. |
| Conversion Type | Single, fixed L.O. |
| L.O. Frequency | 13.05 GHz |
| Frequency Sense | Positive |
| Output Power @ 1dB G.C.P. (P1dB) | +34.0 dBm min. over temperature |
| Linear Gain | 55 dB typ. 51 dB min. |
| Gain Variation over frequency @ fixed temperature | 5 dBp-p max. over 500 MHz 2 dBp-p max. over any 36 MHz |
| Gain Stability over temperature | 5 dBp-p max. 2 dBp-p typ. |
| ACPR | -26 dBc typ. @ Pout = +34 dBm |
| Requirement for External Reference | Frequency: 10 MHz (sine-wave) Input Power: -5 to +5 dBm @ Input port Phase Noise: -120 dBc/Hz max. @ 100 Hz -130 dBc/Hz max. @ 1 kHz -140 dBc/Hz max. @ 10 kHz |
| L.O. Phase Noise | -60 dBc/Hz max. @ 100 Hz -70 dBc/Hz max. @ 1 kHz -80 dBc/Hz max. @ 10 kHz -90 dBc/Hz max. @ 100 kHz -100 dBc/Hz max. @ 1MHz |
| Spurious @ Pout = +34 dBm | In-band: -50 dBc max. @ RF Frequency Receive band: -70 dBm max. @ 10.95 to 12.75 GHz Out-of-band: -50 dBc max. |
| Receive Band Noise Density | * In case of RF Freq.:14 to 14.5GHz -156 dBm/Hz max. @ 10.95 to 12.75 GHz |
| Noise Figure | 18 dB nom., 23 dB max. |
| Input Impedance | 50 ohms nom |
| Input V.S.W.R. | 2 : 1 max. |
| Output V.S.W.R. | 2 : 1 max. |
| Output Load V.S.W.R. | Recommendation: 1.3 : 1 max. Non Damage: Infinite : 1 |
| DC Power Requirement | Voltage Range: +24 VDC (+12 to +30 VDC) Power Consumption: 18 W typ., 23 W max. @ Pout = +34 dBm 15 W max. @ No IF, +25 °C 2 W max. @ 10 MHz reference off (Mute on) |
| Mute | Shut off the HPA in case of L.O. unlocked or no 10 MHz reference signal. |
| Input Interface | IF / Ref. / DC Power Input: N-type female connector, 50 ohms |
| Output Interface | Waveguide, WR-75 (with Grooved) |
| Dimension & Housing | 91.55 (L) x 68 (W) x 42.5 (H) mm [3.60” (L) x 2.68” (W) x 1.67” (H)] without interface connectors |
| Weight | 350 g [0.77 lbs] |
| Temperature Range (ambient) | Operating: -40 to +55 °C *1 Storage: -40 to +75 °C |
| Humidity | 0 to 100 % RH *2 |
| Altitude | 15,000 feet (4,572 m) |
| Vibration | 5 G [49.03 m/s2] (3 axis, 50 Hz to 2 kHz) 1 mm p-p (3 axis, 5 to 50 Hz) |
| Shock | 30 G [294.20 m/s2] (3 axis) |
| Waterproof / Dustproof (IP Code) | IP 67 |
| Regulations | EU Directive (CE Marking) EMC (2014/30/EC) RoHS (2011/65/EU) Safety: EN60950-1 |
资料下载：Datasheet (PDF)
