Description
Specifications

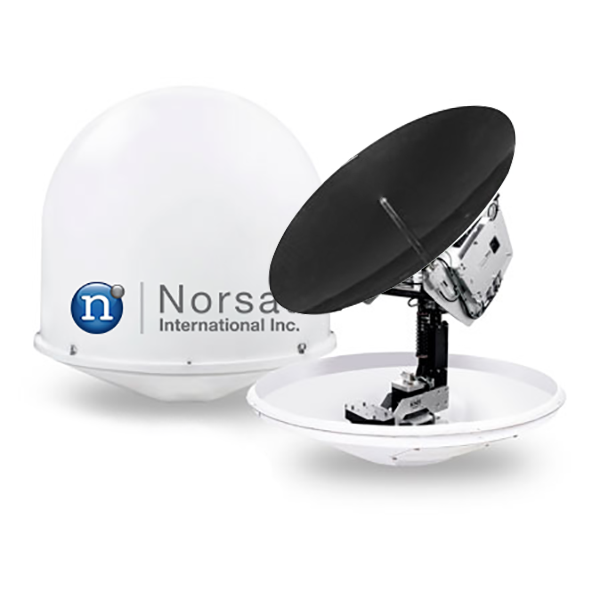

KEY SPECIFICATIONS
| antenna aperture | 1.5m |
|---|---|
| antenna category | Maritime |
| band | X-Band |
| reflector material | FRP |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| ACU size | 19” Rack 1U size |
|---|---|
| angle display resolution | 0.1 degrees |
| antenna dimension | 212 cm (D) x 206 cm (H) |
| antenna input power | Tx : 100-240V AC, 656 VA Rx: 48V DC, 4.18A supplied by ACU |
| auto acquistion time | 5 minutes Max. |
| azimuth range | Unlimited |
| azimuth speed | 10º/sec |
| cross angle | ± 35° |
| cross polarization isolation | 20dB |
| elevation angle | -15° to +110° |
| external I/O | RS-232C, Mini-USB, Ethernet, Console |
| gyro interface | NMEA 2000, NMEA 0183, Synchro, Step by Step |
| operating platform | 3 – Axis |
| preset satellite | 80 satellites |
| ship motion | Roll: ±25° at 6-12 sec periods; Pitch: ±15° at 6-12 sec periods; Yaw: ±5° at 5-50 sec periods |
| ship motion pitch | ±14˚ at 6-12 sec periods |
| ship motion roll | ±24˚ at 8-12 sec periods |
| ship motion yaw | ±8˚ at 15-20 sec periods |
| skew control | Automatic |
| tracking speed | More than 90°/sec |
| vibration damper | Shock Absorber and Wire Rope Isolator |
RF SPECIFICATIONS
| G/T | 18.21 dB/K @ 7.5GHz; @30deg. Elevation, included Radome loss |
|---|---|
| input power | 100 ~ 120V AC / 200 ~ 240V AC 50/60Hz, 8A/4A |
| output VSWR | 2.0 : 1 max. |
| Rx frequency | 7.25 – 7.75 GHz |
| rx gain | 39.6 dBi @ 7.5 GHz |
| Tx frequency | 7.90 – 8.40 GHz |
| tx gain | 40.2 dBi @ 8.15 GHz |
ENVIRONMENTAL SPECIFICATIONS
| humidity | Up to 100% @ 40°C |
|---|---|
| temperature operational | -20°C to +55°C |
| temperature survival | -20°C to +55°C |
PHYSICAL SPECIFICATIONS
| antenna weight | 314 kg |
|---|---|
| packed by | Wooden Crate |
| product dimensions height | 2100 mm |
| product dimensions length | 2130 mm |
| product dimensions width | 2130 mm |
| product weight | 545 kg |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in the Republic of Korea |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | 518 kg |
| Total Aluminium Content | 157 kg |
| Aluminum Country of Smelt and Cast | KR |
| Total Aluminium Value | $392.5 |
