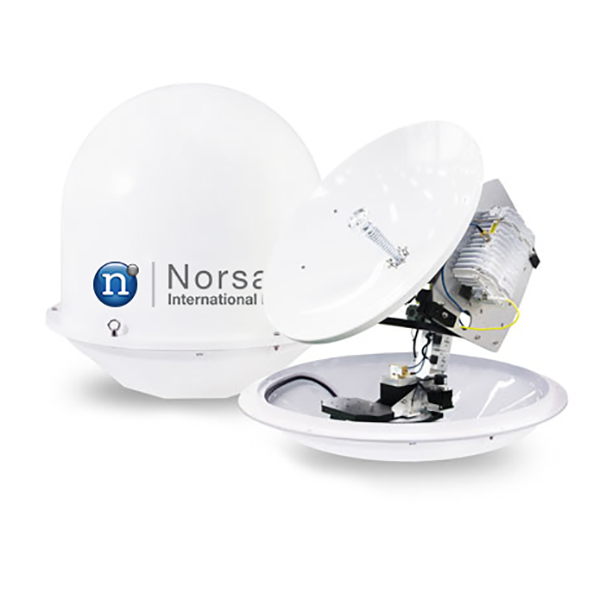

KEY SPECIFICATIONS
| antenna aperture | 0.75m |
|---|---|
| antenna category | Maritime |
| band | Ku-Band |
| reflector material | Honeycomb FRP |
| Product Revision | B |
ANTENNA SPECIFICATIONS
| ACU size | 19” Rack 1U size |
|---|---|
| antenna dimension | 102 cm (D) x 104 cm (H) |
| antenna input power | 48V DC, 4.18A |
| azimuth range | Unlimited |
| cross angle | ± 35° |
| elevation angle | -10° to +110° |
| external I/O | RS-232C, Mini-USB, Ethernet, Console |
| gyro interface | NMEA 0183, Synchro, Step by Step |
| operating platform | 3 – Axis |
| ship motion | Roll: ±24.7° at 8-12 sec periods; Pitch: ±15° at 6-12 sec periods; Yaw: ±8° at 15-20 sec periods |
| skew control | Automatic |
| tracking speed | More than 90°/sec |
| vibration damper | Shock Absorber and Rubber Damper included |
RF SPECIFICATIONS
| G/T | Elevation angle and 11.75 GHz, clear sky |
|---|---|
| input power | 100 ~ 120V AC / 200 ~ 240V AC 50/60Hz, 8A/4A |
| output VSWR | 2.0 : 1 max. |
| Rx frequency | 10.75 – 12.75 GHz |
| rx gain | 37.5 dBi @ 11.75 GHz |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 39.1 dBi @ 14.25 GHz |
ENVIRONMENTAL SPECIFICATIONS
| humidity | Up to 100% @ 40°C |
|---|---|
| temperature operational | -20°C to +55°C |
PHYSICAL SPECIFICATIONS
| antenna weight | 67 kg |
|---|---|
| packed by | Wooden Crate |
| product height case 1 | 132 cm |
| product length case 1 | 120 cm |
| product weight | 143 kg |
| product width case 1 | 120 cm |
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in the Republic of Korea |
| Ex Works | Hong Kong |
| ECCN Number | 5A991.G |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 120 mm x 120 mm x 132 mm |
| Unit Package Weight | 0.143 kg |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $0 |
