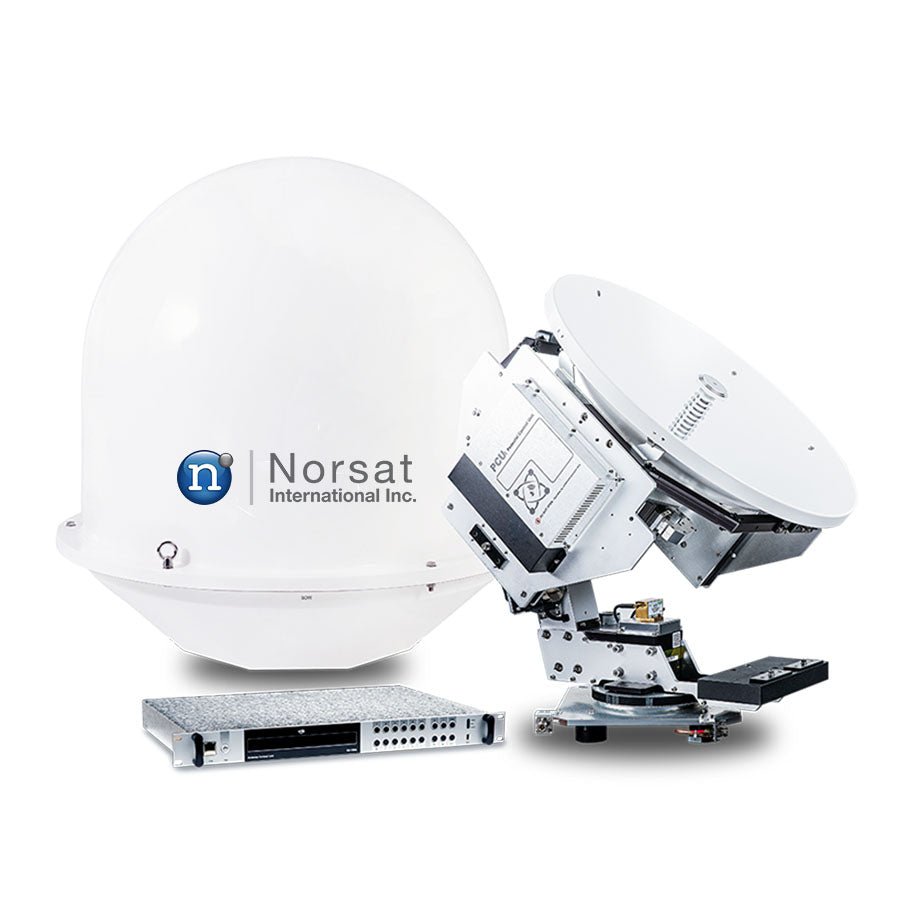

Description
Specifications
KEY SPECIFICATIONS
| antenna category | Maritime |
|---|---|
| band | Ku-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| ACU size | 19″ Rack 1U size |
|---|---|
| angle display resolution | 0.1 degrees |
| angle display range cross | ±35° |
| angle display range elevation | -10° to +110° |
| angle display range elevation azimuth | Unlimited |
| antenna aperture | 0.61 m |
| antenna drive mode | Auto Tracking |
| antenna input power | 48V DC, 11.4A |
| auto acquisition | Yes |
| auto acquistion time | 5 minutes Max. |
| azimuth range | Unlimited |
| azimuth speed | 10º/sec |
| cross angle | ±35º |
| cross polarization isolation | 35dB |
| dish diameter | 0.61 M |
| elevation range | -10° to +110° |
| elevation speed | 10º/sec |
| encoder accuracy AZ | 0.01º |
| external I/O | Mini-USB, USB, Ethernet, Console, AUX, RS-232C, RS-422 |
| feed configuration | Ring focus |
| gyro interface | NMEA 0183, Synchro, Step by Step |
| motion range AZ | ±8° at 15-20 sec periods |
| motion range EL | ±10° at 6-12 sec periods |
| motion range POL | ±20° at 8-12 sec periods |
| operating platform | 3-Axis |
| polarization | Linear |
| polarization range | ±90º |
| polarization speed | 5º/sec |
| preset satellite | 80 satellites |
| ship motion pitch | ±10° at 6-12 sec periods |
| ship motion roll | ±20° at 8-12 sec periods |
| ship motion yaw | ±8° at 15-20 sec periods |
| skew control | Automatic |
| standard BUC options | 8 W |
| standard LNB options | Universal LNB |
RF SPECIFICATIONS
| G/T | 14.48 dB/K (in Radome) @ 30deg. Elevation angle and 11.75 GHz, Clear Sky |
|---|---|
| LNB reference type | Internal |
| Rx frequency | 10.7 – 12.75 GHz |
| Tx frequency | 13.75 – 14.5 GHz |
INTERFACE SPECIFICATIONS
| dvb tuner | DVB-S2X |
|---|---|
| openbmip | Yes |
ENVIRONMENTAL SPECIFICATIONS
| humidity | Up to 100% @ 40°C |
|---|---|
| temperature operational | -20°C to +55°C |
| temperature survival | -20°C to +55°C |
PHYSICAL SPECIFICATIONS
| product dimensions height | 840 mm |
|---|---|
| product dimensions length | 850 mm |
| product dimensions width | 850 mm |
| product weight | 61 kg |
INFORMATION
| HS Code | 8529109100 |
|---|---|
| Country of Origin | Made in Republic of Korea |
| Ex Works | Hong Kong |
| ECCN Number | – |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | 88 kg |
| Total Aluminium Content | 30.5 kg |
| Aluminum Country of Smelt and Cast | KR |
| Total Aluminium Value | $76.25 |
