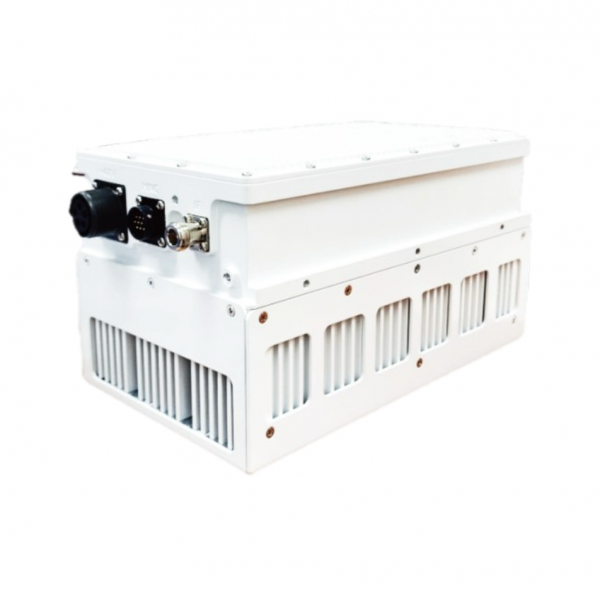

Ku-band 100W BUC (GaN)

Description

Part number: T13100G T14100G
Input Frequency: 950 – 1700 MHz 950 – 1450 MHz
LO Frequency: 12.8 GHz 13.05 GHz
Output Frequency: 13.75 – 14.5 GHz 14.0 – 14.5 GHz
Output Power: 100W (50dBm) @Psat
Phase Noise: @1KHz -80dBc
Gain: 80dB Δ15dB 1dB step
AC/DC Power: +48VDC 650W
