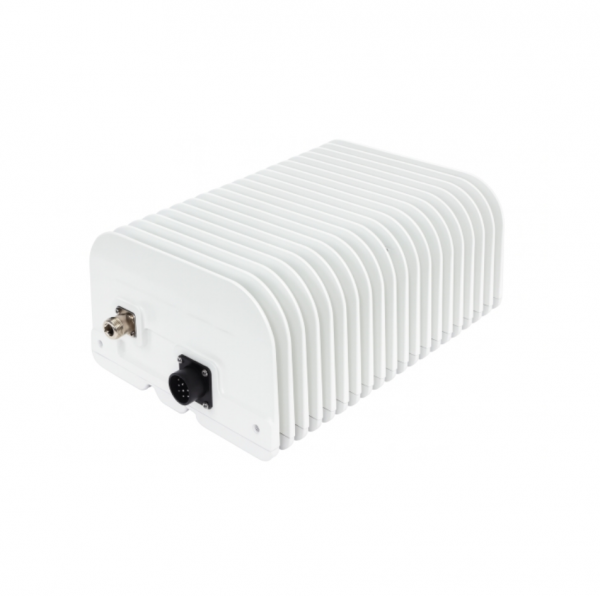

Ka Dual-band 10W BUC (fanless)

Description

Part number: TD28E10
Input Frequency: 1000 – 2000 MHz for each band
LO Frequency: 26.5 GHz 27.5 GHz
Output Frequency: 27.5 – 28.5 GHz 28.5 – 29.5 GHz
Output Power: 10W (40dBm) @Psat
Phase Noise: @1KHz -73dBc
Gain: 65dB Δ15dB 0.5dB step
AC/DC Power: +48VDC 70W
