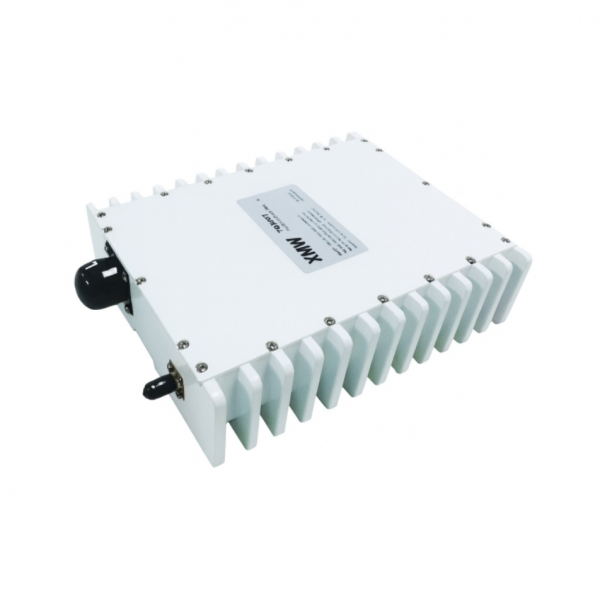

Ka-band 5W BUC (fanless)

Description

Part number: T2705 T2805
Input Frequency: 1052 – 1788 MHz 972 – 1871 MHz
LO Frequency: 26.6 GHz 27.2 GHz
Output Frequency: 27.652 – 28.388 GHz 28.172 – 29.071 GHz
Output Power: 5W (37dBm) @Psat
Phase Noise: @1KHz -73dBc
Gain: 65dB Δ15dB 0.5dB step
AC/DC Power: +48VDC 65W
