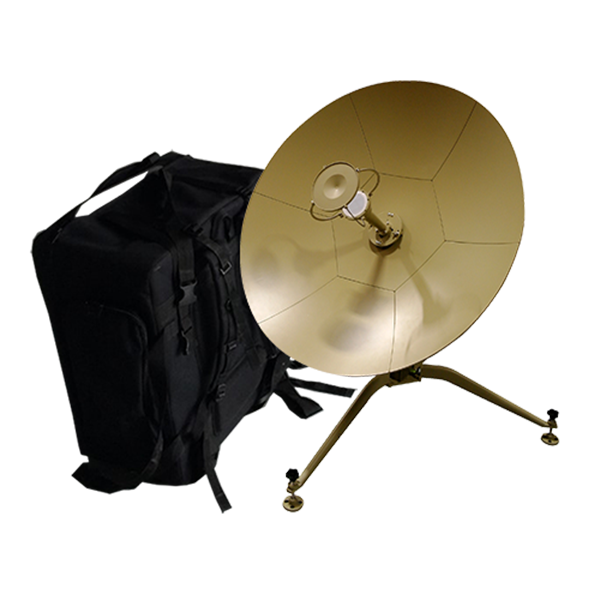

Journey ManPack 0.9 m Ku-Band Manual Acquire Antenna
¥23,018.00
acquisition and tracking: Manual
Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna aperture | 0.9m |
| antenna category | Flyaway |
| band | Ku-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| azimuth range | ±180° |
|---|---|
| cross polarization isolation | <33 dB on axis |
| elevation range | 10° to 90° |
| polarization range | ± 90° |
| standard buc options | 8W, 16W, 20W |
RF SPECIFICATIONS
| Rx frequency | 10.70 – 12.75 GHz |
|---|---|
| rx gain | 39 dBi |
| Tx frequency | 13.75 – 14.50 GHz |
| tx gain | 40 dBi |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 1.0 |
|---|---|
| temperature operational | -40°C to +55°C |
| wind load operational | 36 km/h |
| wind load survival | 65 km/h |
PHYSICAL SPECIFICATIONS
| packaging | Ku-Band System Weight <14 kg; Backpack < 4 kg |
|---|
INFORMATION
| HS Code | 8517690000 |
|---|---|
| Country of Origin | Made in the China |
| Ex Works | Richmond, BC, Canada |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | 850 x 800 x 520 mm |
| Unit Package Weight | 37.4 kg |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
