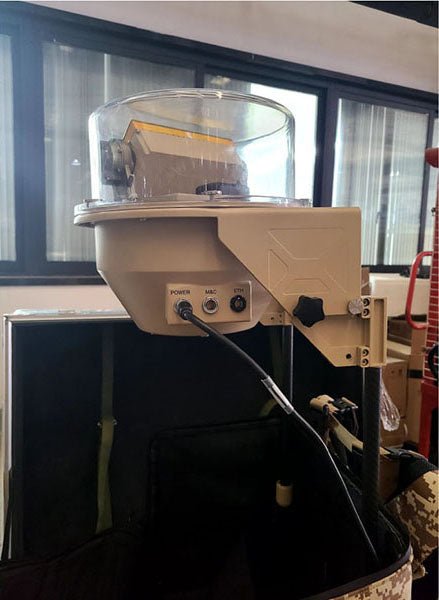

Description
Specifications
KEY SPECIFICATIONS
| acquisition and tracking | Manual |
|---|---|
| antenna category | Flyaway |
| band | Ka-Band |
| of onboard los | Single-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna aperture | 0.12m |
|---|---|
| axis ratio | ≤ 1.5 dB |
| azimuth acceleration | 200°/s² |
| azimuth velocity | ≥ 200°/s² |
| elevation acceleration | 200°/s² |
| elevation veolcity | ≥ 200°/s2 |
| motion range AZ | 0° – 360° infinity |
| motion range EL | 0° – 90° finite |
| polarization | Circular |
| sidelobe | First sidelobe ≤ -12 dB |
RF SPECIFICATIONS
| port isolation Rx-Tx | 60 dB |
|---|---|
| port isolation Tx-Rx | 60 dB |
| power capacity | ≥100 W/port |
| Rx frequency | 17.70 – 21.20 GHz |
| rx gain | 26.0dBi+20lg(f/19.45GHz)dBi |
| Rx VSWR | ≤ 1.8 : 1 |
| Tx frequency | 27.50 – 31.00 GHz |
| tx gain | 29.0dBi+20lg(f/29.5GHz)dBi |
| Tx VSWR | ≤ 1.8 : 1 |
ELECTRICAL SPECIFICATIONS
| power consumption | 100w |
|---|---|
| power supply | 12 – 24VDC, when the voltage change ±10 the system can work normally |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 95% (20°C) |
|---|---|
| IP rating | IP65 |
| temperature operational | -40°C to +55°C |
| temperature storage | -50°C to +70°C |
PHYSICAL SPECIFICATIONS
| default cable (included) | Communication cables, Power supply cables, RF cables, Electrical power cables |
|---|---|
| default cable length | 10m |
| product weight | ≤ 4 kg (including 6w BUC, LNB); ≤ 8.5Kg(exclude battery) |
| RMS | Better than 0.2 beam width (R.M.S) |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | – |
| Ex Works | Hong Kong |
| ECCN Number | EAR99 |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | – |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | – |
