Intellian v85NX Ku-Band or Ka-Band Maritime VSAT Antenna System

Intellian v85NX Ku-Band or Ka-Band Maritime VSAT Antenna System

¥244,798.00

SKU: V5-85-U2JW | Weight: 208.00 KGS | Dimensions: 136.00 (cm) x 141.00 (cm) x 143.00 (cm)

Compare
SKU: Intellian-V5-85-U2JW Category: Tag:

Description

Details

Authorized Distributor

The World’s First Future Proof Ku- to Ka-band Convertible Sub-1m VSAT

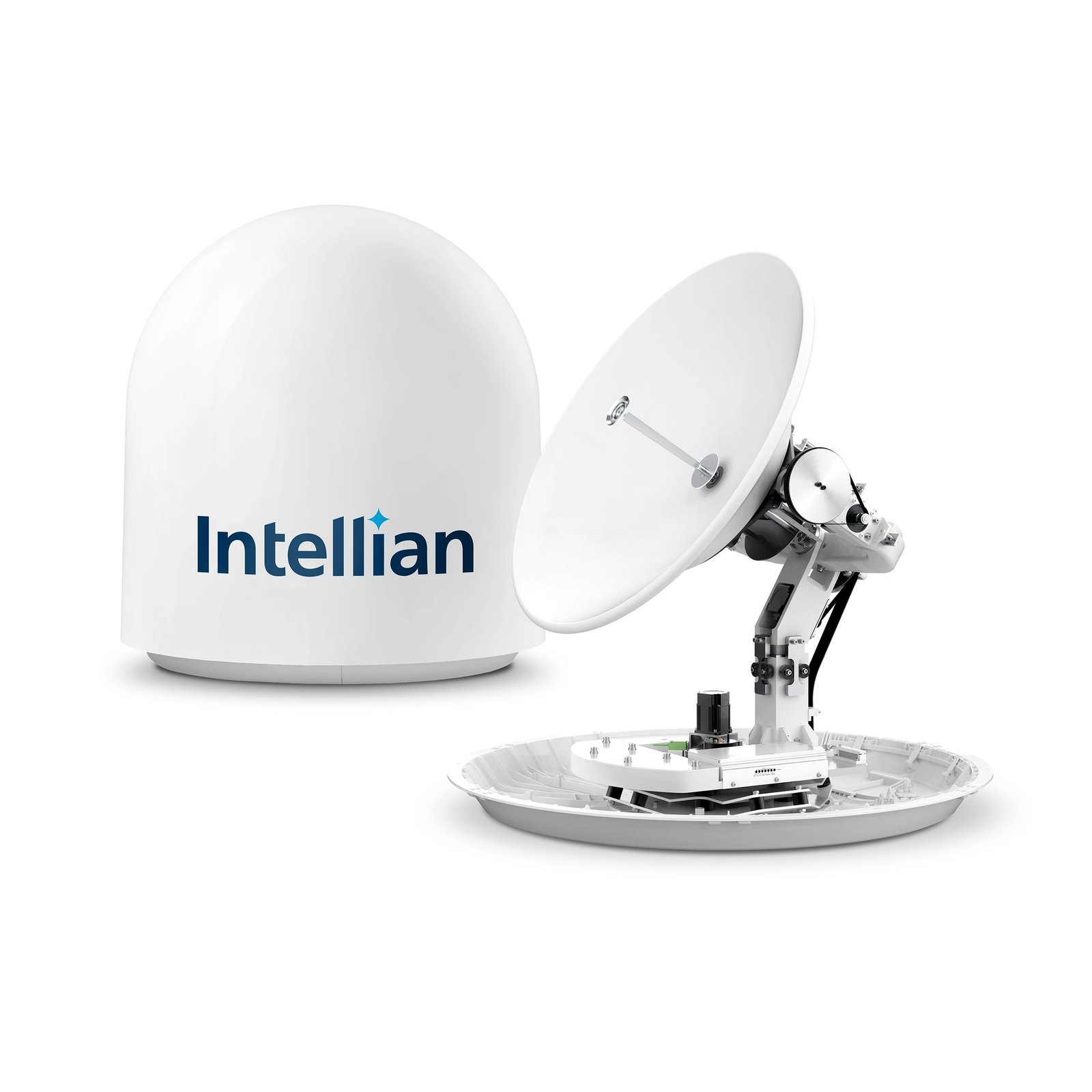

Intellian v85NX is a Ku- to Ka-band convertible maritime VSAT antenna system with a 85cm diameter reflector. The compact 85cm antenna’s smaller footprint allows installation on smaller vessels yet still allows the system to operate on a 1-meter designed network.

Quick Ku- to Ka-band Conversion

The v85NX can be easily converted from Ku- to Ka-band operation by changing the center-mounted RF assembly.

Higher RF Performance

The system comes standard with 8W BUC and can be upgraded to a high power BUC or transceiver system enabling higher throughput.

Quick and Easy Deployment

Single cable design and no internal shipping brackets reduce installation time and cost.

Embedded Dual Antenna Mediator

Intellian’s NX series fully supports dual antenna operations, without an additional mediator or RF splitters.

Future Proof System

  • Hardware designed to track NGSO satellites
  • No additional Mediator needed to track NGSO satellites
  • Ku- to Ka-band convertible
  • 2.5GHz Wideband Ka-band Radome and Reflector ready

Simplified Installation

  • No need to open radome during antenna installation onboard
  • Mounting from outside of radome
  • Pre-hung lifting strap supplied as standard with all NX-series
  • Radome removal not required during install with single cable external termination and dynamic motor braking
Specifications v85NX Ku v85NX Ku v85NX Ku v85NX Ka v85NX Ka v85NX Ka XCVR v85NX Ka XCVR
Radome Dimension 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch) 123×113 cm (48.4×44.5 inch)
Reflector Diameter 85 cm (33.5 inch) 85 cm (33.5 inch) 85 cm (33.5 inch) 85 cm (33.5 inch) 85 cm (33.5 inch) 85 cm (33.5 inch) 85 cm (33.5 inch)
Antenna Weight 96 kg / 211.6 lbs 96 kg / 211.6 lbs 96 kg / 211.6 lbs 96 kg / 211.6 lbs 96 kg / 211.6 lbs 96 kg / 211.6 lbs 96 kg / 211.6 lbs
TX Frequency 13.75~14.5 GHz Ku-band 13.75~14.5 GHz Ku-band 13.75~14.5 GHz Ku-band 29.0~30.0 GHz Ka-band 29.0~30.0 GHz Ka-band 27.5~30.0 GHz Ka-band 27.5~30.0 GHz Ka-band
RX Frequency 10.7~12.75 GHz Ku-band 10.7~12.75 GHz Ku-band 10.7~12.75 GHz Ku-band 19.2~20.2 GHz Ka-band 19.2~20.2 GHz Ka-band 17.7~20.2 GHz Ka-Band 17.7~20.2 GHz Ka-Band
TX Gain 40.7 dBi @ 14.25 GHz (excl. radome) 40.7 dBi @ 14.25 GHz (excl. radome) 40.7 dBi @ 14.25 GHz (excl. radome) 45.8 dBi @ 29.5 GHz (excl. radome) 45.8 dBi @ 29.5 GHz (excl. radome) 45.9 dBi @ 28.8 GHz (excl. radome) 45.9 dBi @ 28.8 GHz (excl. radome)
RX Gain 38.9 dBi @ 11.7 GHz (excl.radome) 38.9 dBi @ 11.7 GHz (excl.radome) 38.9 dBi @ 11.7 GHz (excl.radome) 42.8 dBi @ 19.7 GHz (excl. radome) 42.8 dBi @ 19.7 GHz (excl. radome) 42.6 dBi @ 19.0 Ghz (excl. radome) 42.6 dBi @ 19.0 Ghz (excl. radome)
G/T 18.3 dB/K (min.) 18.3 dB/K (min.) 18.3 dB/K (min.) 18.5 dB/K 18.5 dB/K 18.0 dB/K 18.0 dB/K
BUC Power 8W 16W 25W 5W 10W 4.5W 9W
V5-85-U2JW v85NX incl. 8W Extended BUC & PLL LNB
85cm Ku-Ka Convertible Maritime VSAT Antenna, including:
– V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)
– V1-2212, NJRC 8W Extended BUC (NJT8318UNMR)
– VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated
– X & Co-pol System
V5-85-U2LW v85NX incl. 16W Extended BUC & PLL LNB
85cm Ku-Ka Convertible Maritime VSAT Antenna, including:
– V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)
– V1-2213, NJRC 16W Extended BUC (NJT 8319UNMR)
– VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated
– X & Co-pol System
V5-85-U2VW v85NX incl. 25W Extended BUC & PLL LNB
85cm Ku-Ka Convertible Maritime VSAT Antenna, including:
– V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)
– V1-2217, NJRC 25W Extended BUC (NJT 8370UNMR)
– VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated
– X & Co-pol System
V5-85K-U2TC v85NX Ka incl. 5W Ka-band BUC & Ka-band LNB
85cm Ka band Maritime VSAT Antenna Including:
– GX-1015, NJRC Ka-Band LNB
– GX-1016 NJRC 5W Ka-band BUC
– VP-T84G2 19” Rack Mountable ACU
– X & Co-pol System
V5-85K-U2HC v85NX Ka incl. 10W Ka-band BUC & Ka-band LNB
85cm Ka band Maritime VSAT Antenna Including:
– GX-1015, NJRC Ka-Band LNB
– GX-1076, MMW 10W Ka-Band BUC
– VP-T84G2 19” Rack Mountable ACU
– X & Co-pol System
V5-85K-U2X3N v85NX Ka XCVR (4.5W)
85cm Ka band Maritime VSAT Antenna Including:
– V5-1133, NJRC 4.5W Ka-Band XCVR
– VP-T84G2 19” Rack Mountable ACU
– X & Co-pol System
V5-85K-U2X4N v85NX Ka XCVR (9W)
85cm Ka band Maritime VSAT Antenna Including:
– V5-1133, NJRC 4.5W Ka-Band XCVR
– VP-T84G2 19” Rack Mountable ACU
– X & Co-pol System

Technical Specifications

Radome Dimension 123×113 cm (48.4×44.5 inch)
Reflector Diameter 85 cm (33.5 inch)
Antenna Weight 96 kg / 211.6 lbs
TX Frequency 13.75~14.5 GHz Ku-band; 29.0~30.0 GHz Ka-band; 27.5~30.0 GHz Ka-band
RX Frequency 10.7~12.75 GHz Ku-band; 19.2~20.2 GHz Ka-band; 17.7~20.2 GHz Ka-Band
TX Gain 40.7 dBi @ 14.25 GHz (excl. radome); 45.8 dBi @ 29.5 GHz (excl. radome); 45.9 dBi @ 28.8 GHz (excl. radome)
RX Gain 38.9 dBi @ 11.7 GHz (excl.radome); 42.8 dBi @ 19.7 GHz (excl. radome); 42.6 dBi @ 19.0 Ghz (excl. radome)
G/T 18.3 dB/K (min.); 18.5 dB/K; 18.0 dB/K
BUC Power 8W; 16W; 25W; 5W; 10W; 4.5W; 9W
V5-85-U2JW v85NX incl. 8W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna, including:- V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)- V1-2212, NJRC 8W Extended BUC (NJT8318UNMR)- VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated- X & Co-pol System
V5-85-U2LW v85NX incl. 16W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna, including:- V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)- V1-2213, NJRC 16W Extended BUC (NJT 8319UNMR)- VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated- X & Co-pol System
V5-85-U2VW v85NX incl. 25W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna, including:- V5-4007_A, 2xGlobal Ku-band PLL LNBs (Programmable LO, 9.75~11.3GHz)- V1-2217, NJRC 25W Extended BUC (NJT 8370UNMR)- VP-T84G2, 19” Rack Mountable ACU, 48VDC BUC Power Supply, Spectrum Analyzer, Antenna Mediator Function Integrated- X & Co-pol System
V5-85K-U2TC v85NX Ka incl. 5W Ka-band BUC & Ka-band LNB85cm Ka band Maritime VSAT Antenna Including:- GX-1015, NJRC Ka-Band LNB- GX-1016 NJRC 5W Ka-band BUC- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System
V5-85K-U2HC v85NX Ka incl. 10W Ka-band BUC & Ka-band LNB85cm Ka band Maritime VSAT Antenna Including:- GX-1015, NJRC Ka-Band LNB- GX-1076, MMW 10W Ka-Band BUC- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System
V5-85K-U2X3N v85NX Ka XCVR (4.5W)85cm Ka band Maritime VSAT Antenna Including:- V5-1133, NJRC 4.5W Ka-Band XCVR- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System
V5-85K-U2X4N v85NX Ka XCVR (9W)85cm Ka band Maritime VSAT Antenna Including:- V5-1133, NJRC 4.5W Ka-Band XCVR- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System

Downloads

Additional information

Weight 208 kg
Dimensions 143 × 136 × 141 cm
Brand

Intellian
Weight

208.00 KGS
Width

136.00 (cm)
Height

141.00 (cm)
Depth

143.00 (cm)
Model

V5-85-U2JW
Radome Dimension

123×113 cm (48.4×44.5 inch)
Reflector Diameter

85 cm (33.5 inch)
Antenna Weight

96 kg / 211.6 lbs
TX Frequency

13.75~14.5 GHz Ku-band; 29.0~30.0 GHz Ka-band; 27.5~30.0 GHz Ka-band
RX Frequency

10.7~12.75 GHz Ku-band; 19.2~20.2 GHz Ka-band; 17.7~20.2 GHz Ka-Band
TX Gain

40.7 dBi @ 14.25 GHz (excl. radome); 45.8 dBi @ 29.5 GHz (excl. radome); 45.9 dBi @ 28.8 GHz (excl. radome)
RX Gain

38.9 dBi @ 11.7 GHz (excl.radome); 42.8 dBi @ 19.7 GHz (excl. radome); 42.6 dBi @ 19.0 Ghz (excl. radome)
G/T

18.3 dB/K (min.); 18.5 dB/K; 18.0 dB/K
BUC Power

8W; 16W; 25W; 5W; 10W; 4.5W; 9W
V5-85-U2JW

19” Rack Mountable ACU, 2xGlobal Ku-band PLL LNBs (Programmable LO, 48VDC BUC Power Supply, 9.75~11.3GHz)- V1-2212, Antenna Mediator Function Integrated- X & Co-pol System, including:- V5-4007_A, NJRC 8W Extended BUC (NJT8318UNMR)- VP-T84G2, Spectrum Analyzer, v85NX incl. 8W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna
V5-85-U2LW

19” Rack Mountable ACU, 2xGlobal Ku-band PLL LNBs (Programmable LO, 48VDC BUC Power Supply, 9.75~11.3GHz)- V1-2213, Antenna Mediator Function Integrated- X & Co-pol System, including:- V5-4007_A, NJRC 16W Extended BUC (NJT 8319UNMR)- VP-T84G2, Spectrum Analyzer, v85NX incl. 16W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna
V5-85-U2VW

19” Rack Mountable ACU, 2xGlobal Ku-band PLL LNBs (Programmable LO, 48VDC BUC Power Supply, 9.75~11.3GHz)- V1-2217, Antenna Mediator Function Integrated- X & Co-pol System, including:- V5-4007_A, NJRC 25W Extended BUC (NJT 8370UNMR)- VP-T84G2, Spectrum Analyzer, v85NX incl. 25W Extended BUC & PLL LNB85cm Ku-Ka Convertible Maritime VSAT Antenna
V5-85K-U2TC

NJRC Ka-Band LNB- GX-1016 NJRC 5W Ka-band BUC- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System, v85NX Ka incl. 5W Ka-band BUC & Ka-band LNB85cm Ka band Maritime VSAT Antenna Including:- GX-1015
V5-85K-U2HC

MMW 10W Ka-Band BUC- VP-T84G2 19” Rack Mountable ACU- X & Co-pol System, NJRC Ka-Band LNB- GX-1076, v85NX Ka incl. 10W Ka-band BUC & Ka-band LNB85cm Ka band Maritime VSAT Antenna Including:- GX-1015
