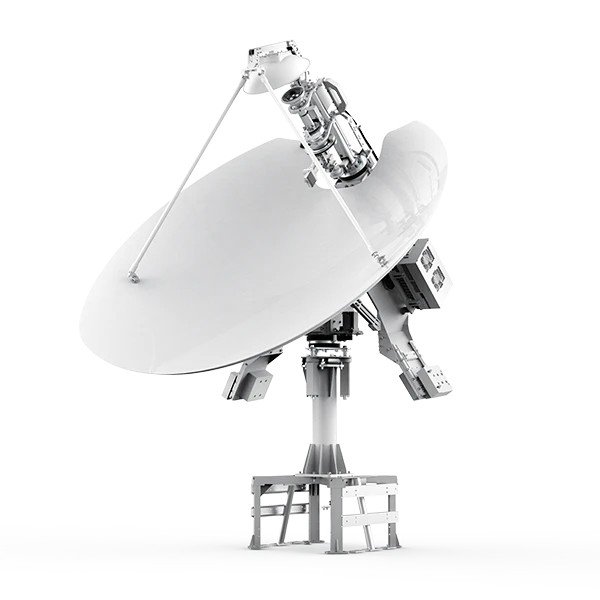

Intellian v240M 2 Ka-band Upgradable Multiband (C&Ku-band) Custom Systems
¥1,159,568.00
SKU: VM2-24C-P || VM2-24D-P || VM2-24E-P | Weight: 1,133.00 KGS
Description
The v240M 2 is the world’s first Dual-band and Multi-orbit antenna system that enables communication services on two different frequency bands with the capability to track Geostationary Earth Orbit (GEO) or Medium Earth Orbit (MEO) satellites.
Key Features
Automatic Frequency Band Switching
It allows automatic switching between C- and Ku-band without user intervention and enables the operator to select the optimum solution for the geographic location.
Future Proof Design
Ka-band upgrade kit will allow the addition of Ka-band communication including future NGSO networks and MEO operation can be enabled using the Intelligent Mediator.
Best In-Class RF Performance
The upgraded design assures consistent RF performance on C- and Ku-bands to enable high -speed, high-quality connectivity for high-bandwidth demanding users.
High Power BUC Support
Various BUC options can be selected up to 400W in both C- and Ku-bands to allow user customization.
Automatic Frequency Band Switching
- Automatic switching between C- and Ku-band without user intervention
- C-band circular and linear switchable feed
- Ku-band cross- and co-pol switchable feed
Best In-Class RF Performance
- Consistent RF performance on both C and Ku-bands
- Enables high-speed, high-quality connectivity for users demanding the highest bandwidth
- High-power BUC options up to 400W in both C- and Ku-bands
Downloads
Additional information
| Weight | 1133 kg |
|---|---|
| Brand | Intellian |
| Weight | 1, 133.00 KGS |
| Model | VM2-24C-P || VM2-24D-P || VM2-24E-P |
