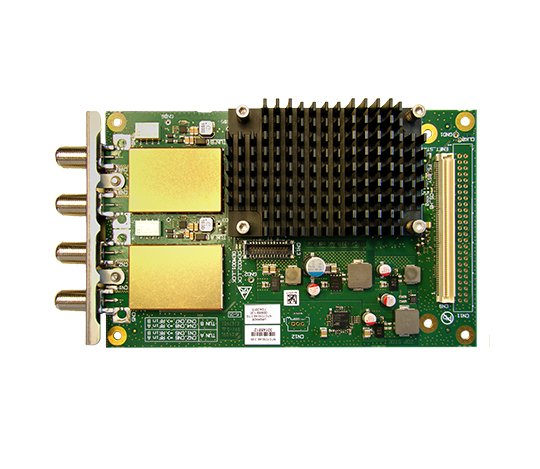

iDirect OD6000 Satellite Demodulator Board
¥17,525.00
The OD6000 board is the first high-end professional DVB-S2X demodulator board able to process data rates up to 190 Mbit/s and operate in high-order modulation schemes up to 64APSK. Available to third party manufacturers under OEM agreement, the high performance OD6000 is the best solution for the demodulation of DVB-S/S2/S2X carriers. It allows for ease of integration due to its compact form factor allowing faster time to market.
Description
The OD6000 board is the first high-end professional DVB-S2X demodulator board able to process data rates up to 190 Mbit/s and operate in high-order modulation schemes up to 64APSK. Available to third party manufacturers under OEM agreement, the high performance OD6000 is the best solution for the demodulation of DVB-S/S2/S2X carriers. It allows for ease of integration due to its compact form factor allowing faster time to market.
Features of the OD6000
- DVB-S2X, DVB-S2 and DVB-DSNG/S standard compliant
- QPSK, 8PSK, 16APSK, 32APSK & 64APSK (under license)
- Single Transport Stream output based upon ISI filtering
- Baseband frames output (under license)
- Support of Multistream and VCM operation
- Data rates up to 190 Mbit/s
- Up to 60 Msps
- 4 x L-band input
- Automatic MODCOD detection
- Adaptive equalizer
- LNB power and control
- Monitoring and control via I²C
- Clean Channel Technology®
Technical Downloads
Additional information
| Weight | 0.4 kg |
|---|---|
| Dimensions | 10 × 16 × 1 cm |
| Brand | iDirect |
| MPN | 40451 |
| Weight | 0.40 KGS |
| Width | 16.00 (cm) |
| Height | 1.00 (cm) |
