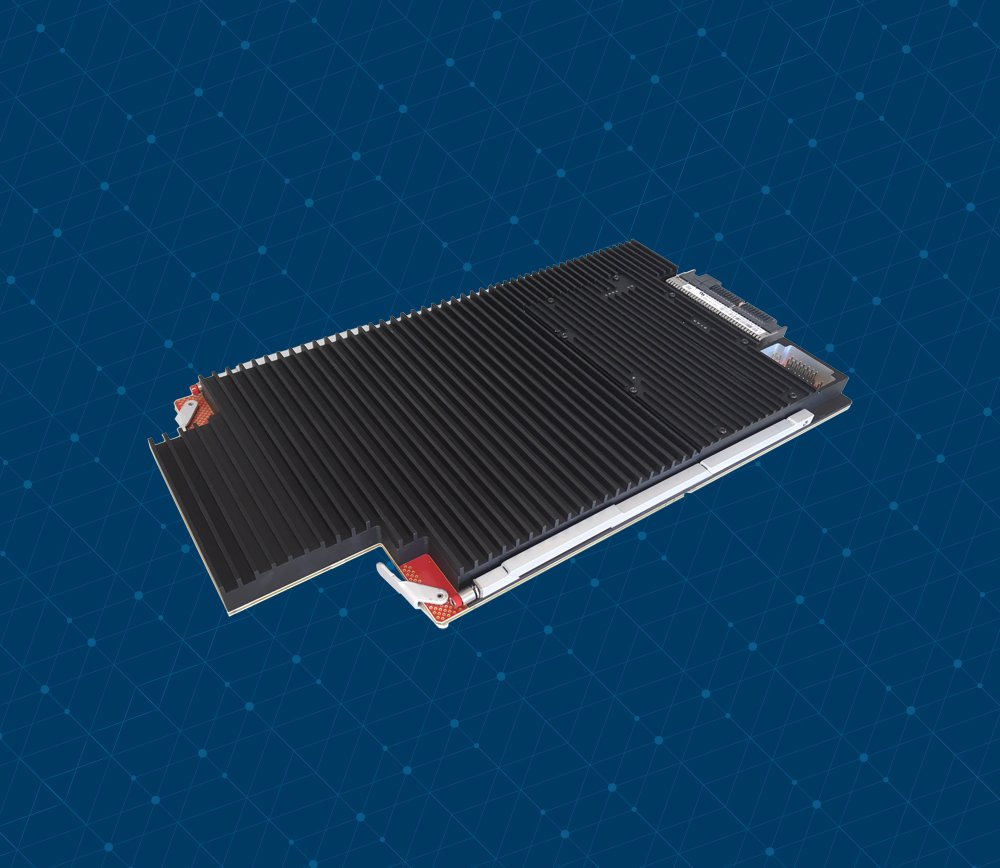

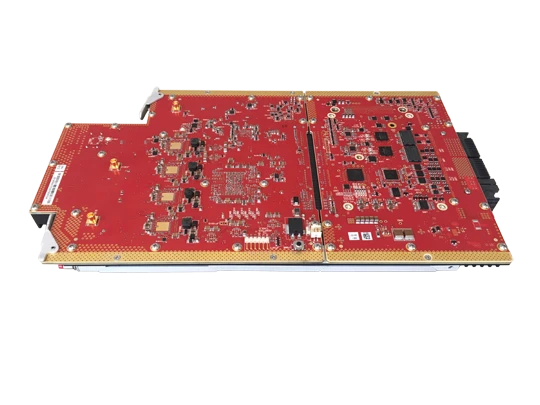

iDirect iQ 800 Aero Modem Board
¥9,044.00
The iQ 800 Aero Integrated Modem Board features iDirect’s DVB-S2/S2X with Adaptive TDMA returns. Designed to integrate into a ARINC 600 enclosure, the iQ 800 Board provides performance, efficiency and security for reliable IP-based satellite communications on commercial aircraft.
Description
The iQ 800 Aero Integrated Modem Board features iDirect’s DVB-S2/S2X with Adaptive TDMA returns. Designed to integrate into a ARINC 600 enclosure, the iQ 800 Board provides performance, efficiency and security for reliable IP-based satellite communications on commercial aircraft.
The iQ 800 Aero Integrated Board is the DVB-S2/DVB-S2X modem module architected specifically for operation on commercial aircraft. The iQ 800 board is designed to integrate directly into a ARINC 600 enclosure, facilitate compliance with DO-160G and ARINC 791 standards and is manufactured to strict aerospace AS9100 standard for quality. It supports operations in a high-speed COTM environment and is configurable for three independent RF chains.
The iQ 800 board supports multi-band, fast beam switching, spread spectrum returns and skew angle compensation to support aeronautical operations and antennas on iDirect Velocity™.
Features of the iQ 800
- DVB-S2/ DVB-S2X up to 475Msps
- Multi-receiver- 500MHz
- 2x1GigE ports
- High Speed Mobility features
- Open AMIP support
- Real time Skew/PSD
- Satellite Blockage mitigation
- Quick Outage Recovery
- Fast Beam switching
- 10/50MHz BUC/LNB Support
Technical Downloads
Additional information
| Weight | 1.22 kg |
|---|---|
| Dimensions | 30.68 × 17.65 × 2.43 cm |
| Brand | iDirect |
| MPN | BX500445 |
| Weight | 1.22 KGS |
| Width | 17.65 (cm) |
| Height | 2.43 (cm) |
