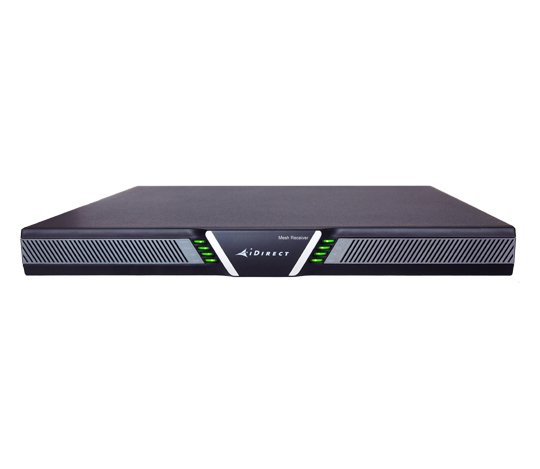

iDirect BX500355 Mesh Receiver
¥146,734.00
The Evolution® Multi-Carrier Mesh solution is iDirect’s high performance product with an industry-leading aggregate receive throughput of up to 29 Msps and individual carrier rates up to 15 Msps (iQ Series). Based on the Mesh Receiver and an iQ Series, 9 Series, or X7 modem, the DVB-S2/DVB-S2X (iQ Series) mesh offering is implemented as a mesh overlay on an Evolution® star topology network. The mesh overlay provides direct connectivity between remote terminals with a single trip over the satellite, thereby halving the latency and reducing satellite bandwidth requirements.
Description
The Evolution® Multi-Carrier Mesh solution is iDirect’s high performance product with an industry-leading aggregate receive throughput of up to 29 Msps and individual carrier rates up to 15 Msps (iQ Series). Based on the Mesh Receiver and an iQ Series, 9 Series, or X7 modem, the DVB-S2/DVB-S2X (iQ Series) mesh offering is implemented as a mesh overlay on an Evolution® star topology network. The mesh overlay provides direct connectivity between remote terminals with a single trip over the satellite, thereby halving the latency and reducing satellite bandwidth requirements.
Mesh Receiver Features
- 2RU solution with an iQ Series, 9 Series, or X7 modem
- Up to 15 Msps per carrier (iQ Series) and 29 Msps aggregate per inroute group
- Receives up to 16 TDMA channels simultaneously, enabling high data throughput without oversized antenna and BUC
- Frequency hopping on transmit using the modem
- Star/mesh bandwidth sharing
- Receives 1-hop transmission from non-mesh terminal using Mesh Tx-only mode
- TCP acceleration for mesh links
- Evolution platform scalability
- Ideal for regional gateway and star-in-star topology
Technical Downloads
Additional information
| Weight | 7 kg |
|---|---|
| Dimensions | 4.4 × 44.5 × 45.7 cm |
| Brand | iDirect |
| MPN | BX500355 |
| Weight | 7.00 KGS |
| Width | 44.50 (cm) |
| Height | 45.70 (cm) |
