iDirect 450mp SDR Modem – K0000172-450
¥8,394.00

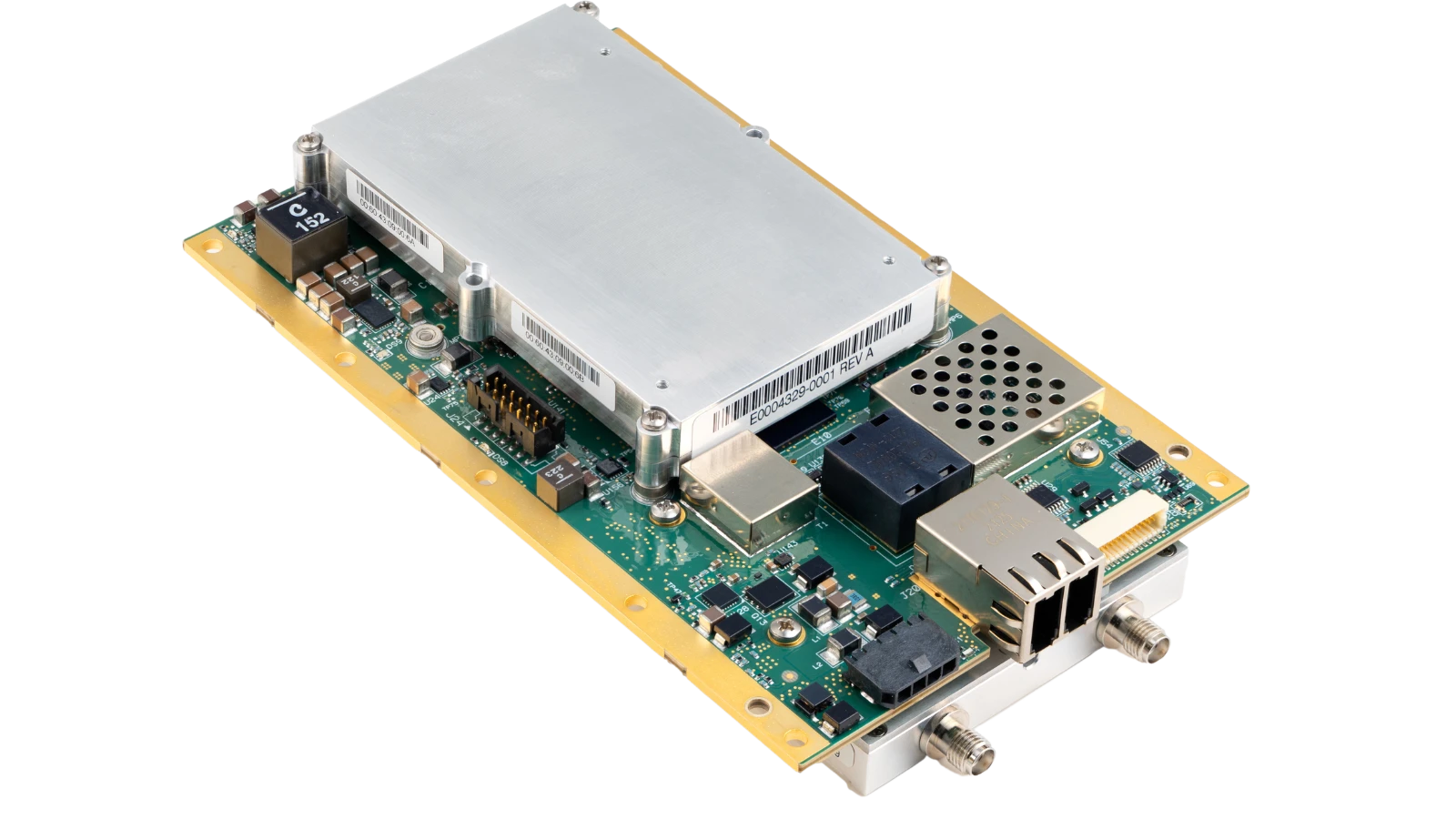

Introducing our first custom multi-orbit, multi-waveform software defined radio (SDR) modem, the 450mp. This modem features an innovative three board modular design: Compute (Digital) module, Radio (RF) module, and Carrier Board (optional). The modular design allows integrators to build their own carrier board, allowing for maximum flexibility in terminal design.
Description
Introducing our first custom multi-orbit, multi-waveform software defined radio (SDR) modem, the 450mp. This modem features an innovative three board modular design: Compute (Digital) module, Radio (RF) module, and Carrier Board (optional). The modular design allows integrators to build their own carrier board, allowing for maximum flexibility in terminal design.
Security – TRANSEC/FIPS 140-3 Level 3
Performance – Terminal Web UI improvements. Improved roll-off (5%). Expanded MODCODS. DVBS2X
Efficiency – Maximized SWaP and maintains the ability to operate air-gapped systems. Cloud enabled datapath and NMS.
The 4-Series Suite of SDR modems are multi-purpose, multi-orbit, and multi-waveform platforms with support for the following waveforms and technology:
• Evolution Defense ATDMA
• SES mPower
• Telesat Lightspeed (Future)
• Stand-Alone Digitizer
• MIL-STD-188-165B (EBEM)
(Future)
• DVB-S2X SCPC
• DVB-S2X SCPC Return
• LPx
• Anti-Jam (CSIR)
• MXDMA MRC (future)
The 450 SDR increases system flexibility while minimizing sustainment costs, providing users with increased resiliency. Users can select the best available waveform to meet mission requirements while benefitting from the most efficient
SWaP.
*Supported in Evolution Defense 4.6
Technical Downloads
Additional information
| Weight | 0.43 kg |
|---|---|
| Dimensions | 6.35 × 9.4 × 3.18 cm |
| Brand | iDirect |
| Weight | 0.43 KGS |
| Width | 9.40 (cm) |
| Height | 3.18 (cm) |
| Depth | 6.35 (cm) |
