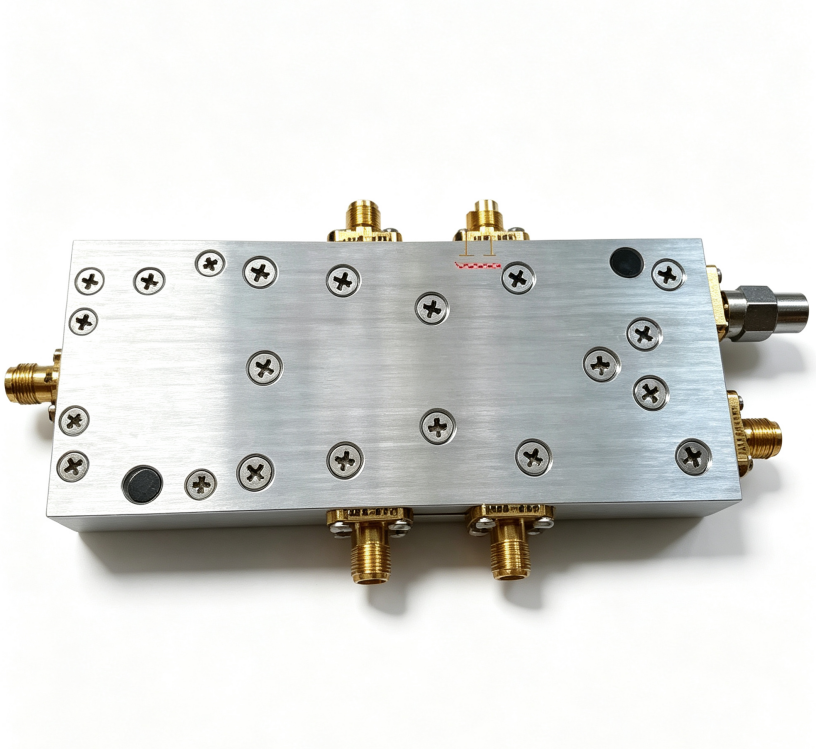

Hybrid Coupler RF
The table below summarizes the core RF specifications for all models in the series. All parameters are tested at +25°C with 50Ω port impedance.
The Hybrid Coupler series is a family of high-performance passive microwave components manufactured by HS Microwave. These devices are widely used in power dividing, signal combining, antenna feed networks, and transmit/receive switching. This datasheet consolidates the technical specifications for all models in the series, serving as a reference for engineering design, system integration, and procurement. All data is sourced directly from original factory test reports and remains unmodified.
| Model | Freq. Range
(GHz) |
IL
(dB) |
VSWR | Isolation
(dB) |
Amp. Bal.
(dB) |
Phase Bal. | Connector | Power
(W) |
| HS–DQ3.35G/5.3W-88.6 | 0.7 _ 6 | 0.5 | 1.3 | 18 | 0.6 | ±4° | Microstrip | 10 |
| HS–DQ5G/6B-46 | 2 _ 8 | 0.5 | 1.3 | 18 | 0.8 | ±4° | 0.5 pin | 80 |
| HS–DQ4.25G/4.5S-80 | 2 _ 6.5 | 0.5 | 1.5 | 15 | 0.5 | ±5° | SMA_K | 80 |
| HS–DQ10G/4S-80 | 8 _ 12 | 0.5 | 1.5 | 15 | 0.5 | ±5° | SMA_K | 80 |
| HS–DQ10G/4B-53.9 | 8 _ 12 | 0.6 | 1.3 | 20 | 0.5 | ±5° | 0.5 pin | 150 |
| HS–DQ3G/2N-85.35 | 2 _ 4 | 0.5 | 1.3 | 18 | 0.5 | ±5° | N_K | 150 |
| HS–DQ3G/2S-46 | 4 _ 8 | 0.5 | 1.3 | 18 | 0.5 | ±5° | SMA_K | 20 |
| HS–DQ1.8G/1YW | 1.3 _ 2.3 | 3.0 | 1.4 | 15 | 0.5 | ±5° | Microstrip | 30 |
| HS–DQ1092M/264-11.33 | 0.9 _ 1.224 | 0.5 | 1.5 | 15 | 0.5 | ±5° | Microstrip | 30 |
