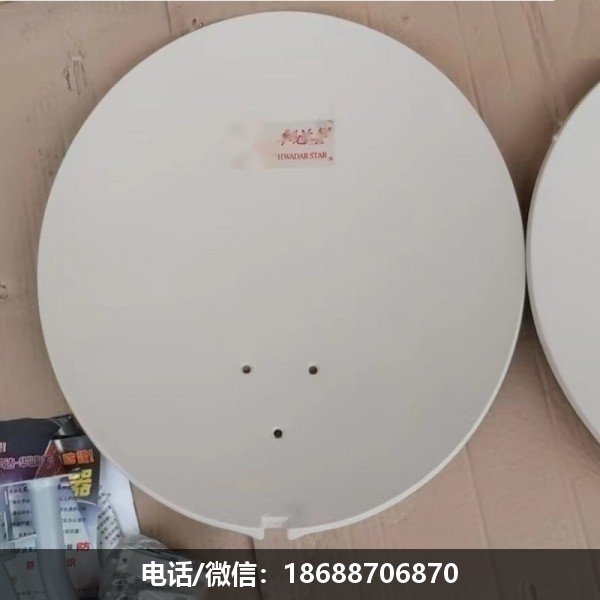

Hwadar SMC 45CM fiberglass antenna, village to village communication, Zhongjiu receiving antenna pot, 45cm household to household communication antenna

Description

Hwadar SMC 45CM fiberglass antenna, village to village communication, Zhongjiu receiving antenna pot, 45cm household to household communication antenna

技术参数 / Specifications
Center frequency gain	ku Band: 41.7dB
3dB wave width	Ku Band: 1.4 °
First sidelobe	-23dB
Polarization isolation	＞ 30dB
Voltage standing wave ratio	<1.2:1
Noise temperature	43 ° K
Feed source connector	ku Band WR75
Reflective surface material	Single piece glass fiber reinforced unsaturated polyester sheet molding compound (SMC)
Antenna type	offset feed
Offset angle	22.3 °
Transportation specification	40KG
Normal operation	-40~60 ℃
Security	45pps
Preservation	-45~70 ℃

The main features of the Hwadar SMC 45CM meter antenna are:

The SMC reflective surface is molded with high precision, good consistency, and no deformation; Low density, high specific gravity, as strong as steel and as light as aluminum, with compressive strength 12 times that of aluminum; Multiple combinations of reflective surfaces with good interchangeability; Corrosion resistance, aging resistance, service life up to 15-20 years; The specially designed feed source and reflector are perfectly matched to achieve the highest efficiency in transmission and reception; Electric polar coordinate tracking structure, capable of providing full orbit satellite coverage; Easy to install and adjust. The reflective surface is designed with orange peel to prevent rain and reduce damage to the high-frequency head.

Electrical characteristics of Huada 45CM meter antenna

Operating frequency (ku Band) 10.75-12.95 GHz

Center frequency gain: ku Band: 41.7dB

3dB wave width: Ku Band: 1.4 °

First sidelobe: -23dB

Polarization isolation: ＞ 30dB

Voltage standing wave ratio:<1.2:1
Noise temperature: 43 ° K

Feed source connector: ku Band WR75

Huada 45cm antenna mechanical characteristics:

Reflective surface material: Single piece glass fiber reinforced unsaturated polyester sheet molding compound (SMC)

Antenna type: offset feed

Offset angle: 22.3 °

Installation form of feed source: single arm support/three pole support

Range of elevation angle adjustment: 0~90 degrees, c
