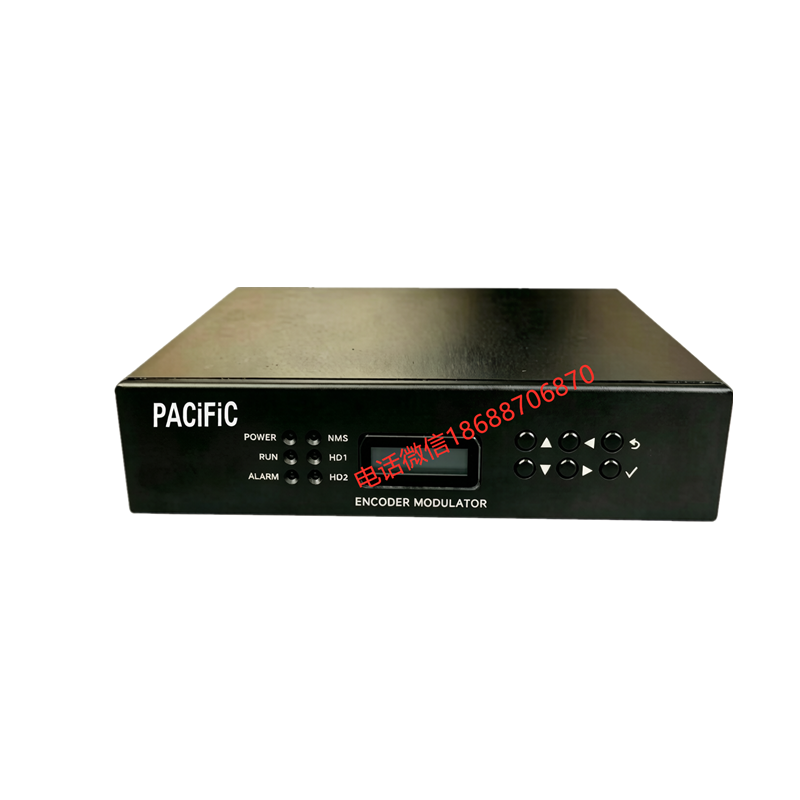

 PACIFIC P5000-2  HD Encoding Multiplexing Modulation

PACIFIC P5000-2 Universal Multi-Channel HD Encoding Multiplexing Modulation All-in-One Unit For both engineering and residential applications

PACIFIC P5000-2  all-in-one unit accepts 2-channel HDMI and 1-channel USB video inputs. It adopts H.264 encoding to process, multiplex and modulate HD video signals into RF output, compliant with multiple digital TV standards. The RF signal can be directly connected to coaxial TV systems.

Built with an RF loop-through input port, it allows signal mixing of multiple device outputs or antenna signals into one combined RF stream. Widely deployed in cable digital TV front-end projects, home monitoring, apartment TV systems, hotels, hospitals, entertainment venues and other IPTV & digital TV systems.

Main Features

2×HDMI + 1×USB video input, supports H.264 encoding

Multi-channel video multiplexing function

External RF loop input, mixes internal modulated signal to single RF output

Multi-standard modulation supported

Agile frequency design: freely set RF output frequency within the full range

Local operation via front panel keys and LCD color screen

TECHNICAL PARAMETER

Item	Specification
Video Encoding
Encoding Standard	H.264
Channel Quantity	2 channels
Supported Resolution	1920×1080@60P、1920×1080@50P、1920×1080@60i、 1920×1080@50i、1280×720@60P、1280×720@50P
Bit Rate	1–19.5 Mbps
Audio
Encoding Standard	MPEG 1 Layer II
Sampling Rate	48 KHz / 44.1 KHz / 32 KHz
Bit Rate	384 Kbps

Item	Specification
Interface Standard	USB 2.0
Supported Video File Format	TS, MPG

Item	Specification
Dimensions	Iron Gray: 160×123.8×41.5 mm (L×W×H)Black: 176×123.8×32 mm (L×W×H)
Operating Temperature & Humidity	-10℃～45℃ , 40%～70%
Storage Temperature & Humidity	-40℃～70℃ , 40%～95%
Power Supply
Input Voltage	DC 12V
Max Current	1200mA

Item	Specification
Modulation Standard	GB20600-2006
FFT Mode	1, 3780, 1+pilot
MER	≥40 dB
FEC Code Rate	0.4、0.6、0.8
Frame Mode	420、595、945、420var、945var
Interleaving Depth	240、720
Constellation	4QAM-NR、4QAM、16QAM、32QAM、64QAM
RF Frequency Range	50–999.999 MHz , Min step: 1 KHz
Output Level	≥100 dBuVAdjustment range: 0–31.5 dB , Step: 0.5 dB
Output Impedance	75 Ω
Out-of-Band Rejection	≥60 dB
