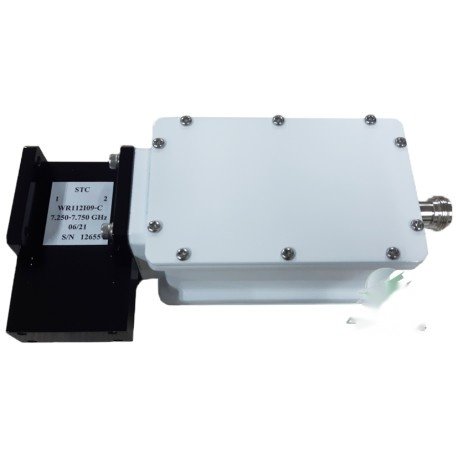

Geosat Low Noise Block X-Band (7.25 – 7.75 GHz) Ext. Ref. PLL (LNB) with W/G Isolator

Compare

SKU: GLBX100XE Category: LNAS Tag: X-Band

Description

Parameter		Specification
	Input Freq.(GHz)	7.25 – 7.75
	Output Freq.(MHz)	950 – 1450
	LO (GHz)	6.3
	Noise figure	Ext. Reference
	Conversion gain at -40 to +60℃	55 dB typ. (50dB min. 62dB max.)
	Gain flatness	4 dBp-p max
	Gain flatness at -40 to +60℃	5 dBp-p max
	Gain ripple at per 27MHz, -40 to +60℃	1 dBp-p max
	L.O stability at -40 to +60℃	depends on ext. ref.
	Image rejection	40 dBc min
	Phase noise	-75 dBc/Hz @1KHz
		-85 dBc/Hz @10KHz
		-95 dBc/Hz @100KHz
	Output P1dB	+5 dBm min.
	Ext. ref. input freq. & power	10 MHz, -5 to +5 dBm
	Ext. ref. input port	IF output connector
	Input VSWR	1.5 : 1 max. (with W/G isolator)
	Output VSWR	2.5 : 1 max.
	Input waveguide flange	WR-112
	Output connector	F, N-Type female (option)
	Power supply	+12 to +24V DC
	Required current	300 mA max
	Operating temperature	-40 to +60℃
	Waterproof	IP 67
	Dimension (exclude connector)	70.0 x 59.0 x 118.0 mm
	Weight	620 g
