Section |
Item |
Specification |

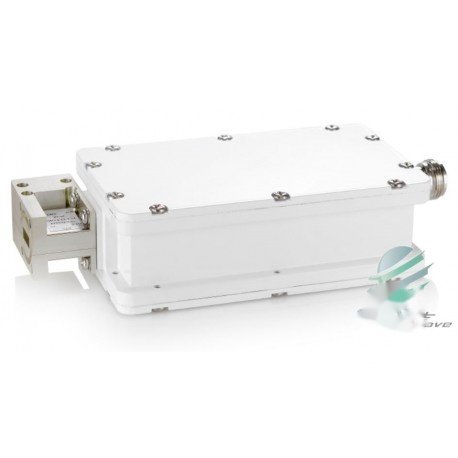

| GLKA4LOXI (1) |
Band 1 |
Input (GHz) |
17.20 – 18.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
16.25 @13V |
| Band 2 |
Input (GHz) |
18.20 – 19.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
17.25 @13V & 22KHz |
| Band 3 |
Input (GHz) |
19.20 – 20.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
18.25 @18V |
| Band 4 |
Input (GHz) |
20.20 – 21.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
19.25 @18V & 22KHz |
| GLKA4LOXI (2) |
Band 1 |
Input (GHz) |
18.20 – 19.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
17.25 @13V |
| Band 2 |
Input (GHz) |
19.20 – 20.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
18.25 @18V |
| Band 3 |
Input (GHz) |
20.20 – 21.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
19.25 @18V & 22KHz |
| Band 4 |
Input (GHz) |
21.20 – 22.20 |
| Output (MHz) |
950 – 1950 |
| L.O (GHz), Switching |
20.25 @22V |
| |
|
Noise figure |
2.0 dB max. (with isolator) |
| |
|
Conversion gain at -40 to +60℃ |
60 dB typ. (55dB min, 65dB max) |
| |
|
Gain flatness |
4 dBp-p max. (each band) |
| |
|
Gain flatness at -40 to +60℃ |
5 dBp-p max. (each band) |
| |
|
Gain ripple at per 27MHz, -40 to +60℃ |
1 dBp-p max |
| |
|
L.O stability at -40 to +60℃ |
depends on ext. ref. |
| |
|
Image rejection |
40 dBc min. @Band 1 |
| |
|
|
10 dBc min. @Band 2 |
| |
|
|
0 dBc min. @Band 3, 4, 5 |
| |
|
Phase noise |
-70 dBc/Hz (@1 KHz) |
| |
|
|
-80 dBc/Hz (@10 KHz) |
| |
|
|
-95 dBc/Hz (@100 KHz) |
| |
|
Output P1dB |
+10 dBm min. |
| |
|
Ext. ref. input freq. & power |
10 MHz, -5 to +5 dBm |
| |
|
Ext. ref. input port |
IF output connector |
| |
|
Input VSWR |
1.5 : 1 max. |
| |
|
Output VSWR |
2.2 : 1 max. |
| |
|
Input waveguide flange |
WR-42 |
| |
|
Output connector |
F, N-type female (option) |
| |
|
Power supply |
+12 to +24V DC |
| |
|
Required current |
450 mA max. |
| |
|
Operating temperature |
-40 to +60℃ |
| |
|
Waterproof |
IP 67 |
| |
|
Dimension (exclude connector) |
66.8 x 38.4 x 139.6 mm |
| |
|
Weight |
560 g |
