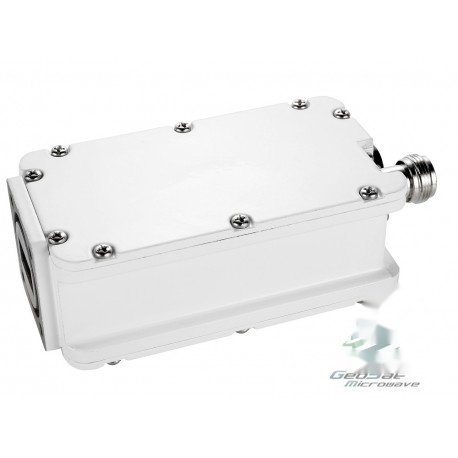

Geosat Low Noise Amplifiers Ku-Band (10.7 – 12.75 GHz) (LNA)
• Low Current Consumption.
• Low Noise Specification
• Designed for Fixed or Mobile Applications
• Broad Gain Control Range
• 3 Year GeoSat Product Warranty
Description
• Low Current Consumption.
• Low Noise Specification
• Designed for Fixed or Mobile Applications
• Broad Gain Control Range
• 3 Year GeoSat Product Warranty
| Parameter | Specification | |
| Frequency range | 10.7 – 12.75 GHz | |
| Noise figure | 0.8 dB max. | |
| Conversion gain at -40 to +60℃ | 55 dB typ. (50dB min, 60dB max.). | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Gain ripple at per 36MHz, -30 to +60℃ | 1 dBp-p max. | |
| Output P1dB | +5 dBm min. | |
| Input VSWR | 2.0: 1 max | |
| Output VSWR | 2.0: 1 max | |
| Input waveguide flange | WR-75 | |
| Output connector | N, SMA-type female (option) | |
| Power connector | MS3112E10-6P (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 250 mA max | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 60.0 x 41.6 x 111.5 mm | |
| Weight | 450 g | |
