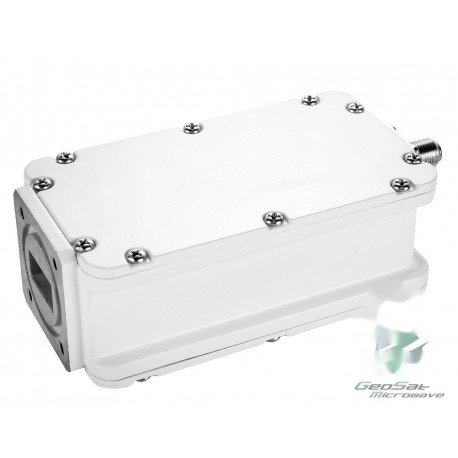

Geosat Ku-Band (10.7 – 11.8 GHz) PLL LNB
- Input Freq. – 10.7-11.8 GHz
- Local Frequency – 9.75 GHz
- Noise Figure – 0.9 dB max
- L.O stability at -40 to +60℃ – ±5 KHz max
- Input waveguide flange – WR-75
- Power Supply – +12 to +24V DC
Description
- Input Freq. – 10.7-11.8 GHz
- Local Frequency – 9.75 GHz
- Noise Figure – 0.9 dB max
- L.O stability at -40 to +60℃ – ±5 KHz max
- Input waveguide flange – WR-75
- Power Supply – +12 to +24V DC
| Parameter | Specification | |
| Input Freq. | 10.7 – 11.8 GHz | |
| Output Freq. | 950 – 2050 MHz | |
| L.O Freq. | 9.75 GHz | |
| Noise figure | 0.9 dB max | |
| Conversion gain at -40 to +60℃ | 60 dB typ. (55dB min. 65dB max.) | |
| Gain flatness | 4 dBp-p max. | |
| Gain flatness at -40 to +60℃ | 5 dBp-p max. | |
| Gain ripple at per 27MHz, -30 to +60℃ | 1 dBp-p max. | |
| L.O stability at -40 to +60℃ | ±5 KHz max | |
| Image rejection | 40 dBc min. | |
| Phase noise | -70 dBc/Hz (@1KHz) -80 dBc/Hz (@10KHz) -95 dBc/Hz (@100KHz) |
|
| Output P1dB | +5 dBm min. | |
| Input VSWR | 2.5: 1 max | |
| Output VSWR | 2.5: 1 max | |
| Input waveguide flange | WR-75 | |
| Output connector | F, N-Type female (option) | |
| Power supply | +12 to +24V DC | |
| Required current | 350 mA max. | |
| Operating temperature | -40 to +60℃ | |
| Waterproof | IP 67 | |
| Dimension (exclude connector) | 60.0 x 41.6 x 111.5 mm | |
| Weight | 380 g | |
