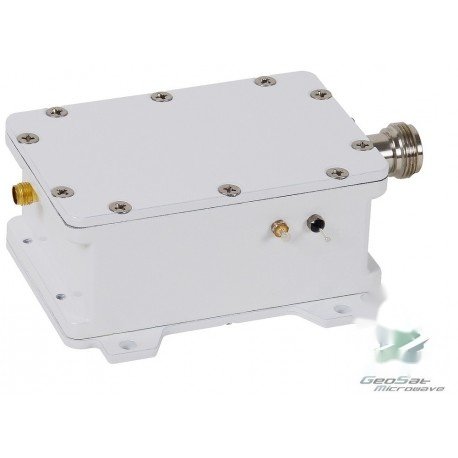

Geosat Block Downconverter Ka-Band (21.2 – 22.2 GHz) Ext. Ref. (BDC)

Compare

SKU: GBDKA2122X Category: BDCS Tag: Ka-Band

Description

Parameter		Specification
	Input Freq.	21.2 – 22.2 GHz
	Output Freq.	950 – 1950 MHz
	L.O Freq.	20.25 GHz
	Noise figure	18 dB max
	Conversion gain at -40 to +60℃	25 dB typ. (22dB min. 28dB max.)
	Gain flatness	4 dBp-p max.
	Gain flatness at -40 to +60℃	5 dBp-p max.
	Gain ripple at per 27MHz, -30 to +60℃	1 dBp-p max.
	L.O stability at -40 to +60℃	depends on ext. ref.
	Image rejection	40 dBc min.
	Phase noise	-70 dBc/Hz (@1KHz) -80 dBc/Hz (@10KHz) -95 dBc/Hz (@100KHz)
	Output P1dB	+5 dBm min.
	Ext. ref. input freq. & power	10 MHz, -5 to +5 dBm
	Ext. ref. input port	Output connector
	Input VSWR	2.2: 1 max
	Output VSWR	2.2: 1 max
	Input connector	SMA-type female (option)
	Output connector	SMA, F, N-Type female (option)
	Power supply	+15 to +24V DC
	Power supply connector	Feed thru and/or output connector
	Required current	300 mA max.
	Operating temperature	-40 to +60℃
	Waterproof	IP 67
	Dimension (exclude connector)	89.6 x 78.0 x 40.0 mm
	Weight	400 g
