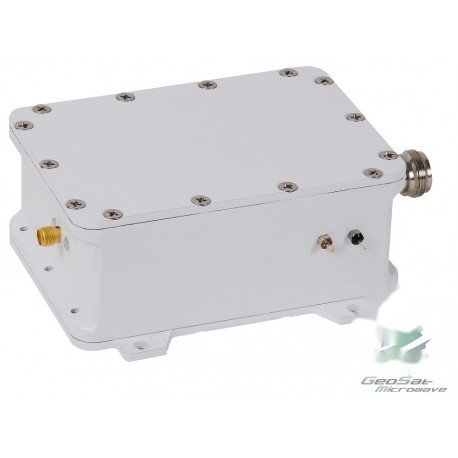

Geosat Block Downconverter C-Band (4.5 – 4.8 GHz) Ext. Ref. (BDC)

Compare

SKU: GBD-BDCS_245 Category: BDCS Tag: C-Band

Description

Parameter		Specification
	Input Freq.	4.5 – 4.8 GHz
	Output Freq.	1150 – 1450MHz
	L.O Freq.	5.95 GHz
	Noise figure	10 dB max
	Conversion gain at -40 to +60℃	40 dB typ. (37dB min. 43dB max.)
	Gain flatness	4 dBp-p max.
	Gain flatness at -40 to +60℃	5 dBp-p max.
	Gain ripple at per 27MHz, -30 to +60℃	1 dBp-p max.
	L.O stability at -40 to +60℃	depends on ext. ref.
	Image rejection	45 dBc min.
	Phase noise	-73 dBc/Hz (@1KHz) -83 dBc/Hz (@10KHz) -93 dBc/Hz (@100KHz)
	Output P1dB	+5 dBm min.
	Ext. ref. input freq. & power	10 MHz, -5 to +5 dBm
	Ext. ref. input port	IF output connector
	Input VSWR	2.0: 1 max
	Output VSWR	2.0: 1 max
	Input connector	SMA-type female
	Output connector	F, N, SMA-type female (option)
	Power supply	+12 to +24V DC
	Power supply connector	Feed thru and/or output connector
	Required current	300 mA max.
	Operating temperature	-40 to +60℃
	Waterproof	IP 67
	Dimension (exclude connector)	108.0 x 94.0 x 46.0 mm
	Weight	620 g
