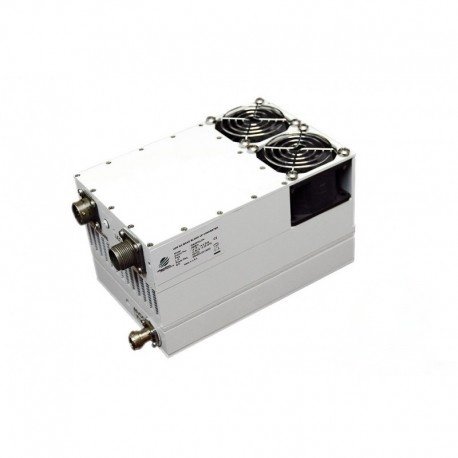

GeoSat 40W Ku-Band (13.75/14.0 ~ 14.5GHz) Double L.O. BUC Block Up-Converter
• High Output, Low Power Consumption
• GAN HEMTs results in best in class MTBF
• Outdoor, Compact, Lightweight Design
• Designed to Meet ETSI & FCC Standards
• RoHS Compliant
• 3 Year GeoSat Product Warranty
Description
• High Output, Low Power Consumption
• GAN HEMTs results in best in class MTBF
• Outdoor, Compact, Lightweight Design
• Designed to Meet ETSI & FCC Standards
• RoHS Compliant
• 3 Year GeoSat Product Warranty
|
Section |
Item |
Specification |
|
|
|
Power Requirement |
Voltage |
80-240 VAC; optional 36-70VDC (48V Nominal) |
|
Power Consumption |
280W max |
||
|
|
Input Characteristics |
Frequency Range |
950 ~ 1450MHz (950 ~ 1700MHz optional) |
|
Impedance |
75/50 Ohms |
||
|
Return Loss (VSWR) |
> 15 dB |
||
|
IF Connector |
F / N-Type (Female) |
||
|
|
Output Characteristics |
Frequency Range |
13.75 ~ 14.5GHz |
| Power @ 1dB Comp. | Min. 46.5dBm over temp. | ||
|
RF Connector |
WR 75 |
||
|
|
Transfer Characteristics |
Frequency Sense |
Not Inverted |
| Local Frequency | 12.8 / 13.05 GHz | ||
| External Reference Frequency | 100 MHz, Sine wave | ||
| Gain | 70 dB typ. @25 ℃ | ||
|
Phase Noise ▼ |
|||
|
100Hz |
< -68dBc / Hz |
||
|
1kHz |
< -78dBc / Hz |
||
|
10kHz |
< -88dBc / Hz |
||
|
100kHz |
< -110dBc / Hz |
||
| L.O. Leakage | -42 dBc | ||
| IMD (with 2 carries @6dB back off) | -30 dBs | ||
|
|
LED Indicators | Mute | HPA is turned off in case of LO unloked |
|
|
Mechanical |
Dimension (mm) |
185 (215 with connectors) x120x110 mm |
|
Weight |
4.5kg |
||
|
Painting |
White color | ||
| Operating Temperature | – 40℃ ~ + 55℃ | ||
|
|
– |
||
