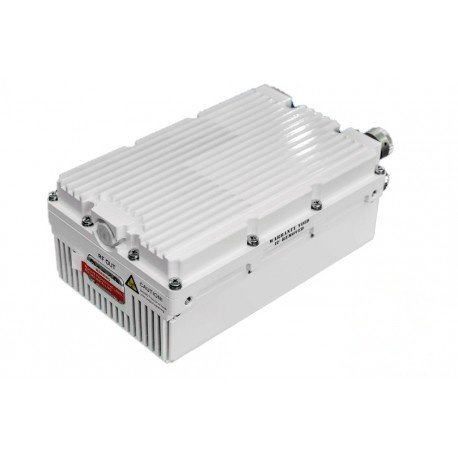

GeoSat 3W Ku-Band (14.0 ~ 14.5GHz) BUC Block Up-Converter | Model: GB34SKU1N
• High Output, Low Power Consumption
• GAN HEMTs results in best in class MTBF
• Outdoor, Compact, Lightweight Design
• Designed to Meet ETSI & FCC Standards
• RoHS Compliant
• 3 Year GeoSat Product Warranty
Description
• High Output, Low Power Consumption
• GAN HEMTs results in best in class MTBF
• Outdoor, Compact, Lightweight Design
• Designed to Meet ETSI & FCC Standards
• RoHS Compliant
• 3 Year GeoSat Product Warranty
|
Section |
Item |
Specification |
||
|
|
Power Requirement |
Voltage |
+18 to +36 VDC (+24 VDC nominal), +48 VDC (Optional) |
|
|
Power Consumption |
50 W @Rated Output Power / 40 W @Linear Output Power |
|||
|
|
Input Characteristics |
Frequency Range |
950 – 1950 MHz, 1000 – 2000 MHz (Optional) 950 – 1450 MHz |
|
|
RF Connector / VSWR |
Type N Female / 1.5: 1 |
|||
|
|
Output Characteristics |
Frequency Range |
29 – 30 GHz, 30 – 31 GHz, 29.5 – 30 GHz |
|
|
Saturated / Rated / Linear Power |
≥34.8 dBm / 34.8 dBm / 31.8 dBm |
|||
|
Output Spurious |
-55 dBc (Max) |
|||
|
RF Connector / VSWR |
WR28-G (Grooved) / 1.25: 1 |
|||
|
|
Transfer Characteristics |
External Reference Frequency |
10 MHz, 0 ± 5 dBm |
|
|
Gain Variation |
1 dB p-p/36 MHz, 3 dB p-p/500 MHz, 4 dB p-p/1000 MHz |
|||
|
Gain Stability |
±1.5 dB |
|||
| Gain Adjustment Range | 20 dB (Step: 1 dB) | |||
| Small Signal Gain | 65 dB(Nominal) | |||
| IMD3 at Linear Output Power | -25 dBc | |||
|
Phase Noise ▼ |
||||
|
100Hz |
< -60dBc / Hz |
|||
|
1kHz |
< -70dBc / Hz |
|||
|
10kHz |
< -80dBc / Hz |
|||
|
100kHz |
< -90dBc / Hz |
|||
| Power Supply Connector | ACS02E10SL-4P | |||
| Monitor & Control Connector | PT02E-12-10P, RS-485 & RS-232 / Ethernet & RS-232 (Optional) | |||
|
|
LED Indicators |
Red and Yellow |
||
|
|
Mechanical |
Dimension (mm) |
206*136*88 mm |
|
|
Weight |
≤3.5 Kg |
|||
|
Humidity / Altitude |
0 – 100% (Condensing) / 0 – 3000 m ASL |
|||
| Operating Temperature | 40℃ ~ + 70℃ | |||
|
|
– |
|||
