PACIFIC P5000 專業數位编码調變器

項目分類 規格名稱 詳細參數說明

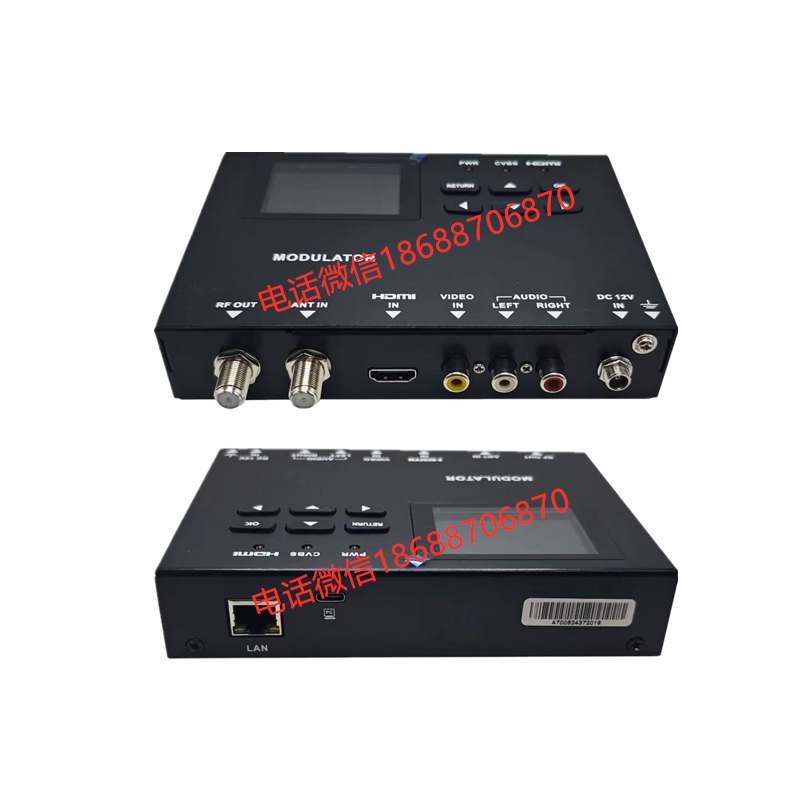

介面與輸入輸出​ 視頻輸入​ 支援 HDMI 及 CVBS 複合視頻信號輸入
射頻輸出 (RF OUT)​ 國標 DTMB 射頻輸出，頻率可調
天線輸入 (ANT IN)​ RF 信號輸入，具備信號混合 (Mixing) 功能
網路管理 (LAN)​ 網管介面（預設 IP: 192.168.1.15），支援 DHCP/手動 IP
DTMB 調變參數​ 適用地區​ 中國 / 香港
調變標準​ 國標 GB20600-2006
頻率範圍​ C21 – C69 (474 – 858 MHz)，可調
載波類型​ DTMB 單載波 (Single Carrier)
FEC 碼率​ 0.4 / 0.6 / 0.8
幀頭模式​ 420 / 945
交織深度​ None / 240 / 720
調製星座​ 4QAM / 16QAM / 32QAM / 64QAM
射頻輸出電平​ 最大 100 dBµV (69 – 100 可選)
編碼與解析度​ 影像格式​ MPEG-2
影像碼率​ 5 – 15 Mb/s
輸入解析度​ 最高 1080I / 1080P (1920×1080 @ 50/60I, 50/60P)
輸出解析度​ 最高 1080I / 1080P (1920×1080 @ 25/30I, 25/30P)
節目與網路資訊​ NIT 及節目設定​ 支援節目名稱、提供商名稱、網路名稱、LCN、服務號 ID
PID 設定​ 支援 PMT、視頻 (Video)、音頻 (Audio) PID 設定
ID 設定​ 支援網路 ID、原始網路 ID、傳輸流 ID
系統與外觀​ 操作介面​ 液晶顯示幕 (LCD) + 按鍵操作；WEB 網頁管理後台
語言​ English
電源規格​ DC 12V / 1.5A (標配英規電源適配器)
工作溫度​ 0 ~ 45℃
機器尺寸​ 158 × 112 × 31 mm (不含掛耳長度)
重量​ < 1 kg
Compare
Category:

Description

PACIFIC P5000 Professional HD/SD Digital Encoder Modulator

Category Specification Description
Interfaces & I/O​ Video Input​ Supports HDMI and CVBS composite video signals.
RF Output (RF OUT)​ DTMB RF output compliant with Chinese National Standard; frequency adjustable.
Antenna Input (ANT IN)​ RF signal input with mixing functionality.
Network Management (LAN)​ Network management port (Default IP: 192.168.1.15); supports DHCP and Manual IP.
DTMB Modulation Parameters​ Region​ China / Hong Kong
Standard​ GB20600-2006 (China DTMB Standard)
Frequency Range​ C21 – C69 (474 – 858 MHz), Adjustable
Carrier Type​ DTMB Single Carrier
FEC Code Rate​ 0.4 / 0.6 / 0.8
Frame Header Mode​ 420 / 945
Interleaving Depth​ None / 240 / 720
Modulation Constellation​ 4QAM / 16QAM / 32QAM / 64QAM
RF Output Level​ Max 100 dBµV (69 – 100 selectable)
Encoding & Resolution​ Video Format​ MPEG-2
Video Bitrate​ 5 – 15 Mb/s
Input Resolution​ Up to 1080i / 1080p (1920×1080 @ 50/60i, 50/60p)
Output Resolution​ Up to 1080i / 1080p (1920×1080 @ 25/30i, 25/30p)
Program & Network Info​ NIT & Program Settings​ Supports Program Name, Provider Name, Network Name, LCN, Service ID.
PID Settings​ Supports PMT, Video PID, and Audio PID configuration.
ID Settings​ Supports Network ID, Original Network ID, and Transport Stream ID.
System & Physical​ Control Interface​ LCD Display + Keypad Operation; WEB Management Backend.
Language​ English
Power Supply​ DC 12V / 1.5A (UK-type power adapter included).
Operating Temperature​ 0 ~ 45°C
Dimensions​ 158 × 112 × 31 mm (Excluding mounting ear length)
Weight​ < 1 kg
