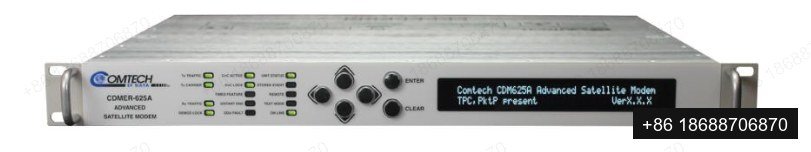

Comtech CDMER-625A Advanced Satellite Modem
CDMER – 625A Advanced Satellite Modem Overview The CDM ER – 625 A is the Environmentally Resistant (ER) version of the CDM – 625A. It offers added protection in more aggressive operating environments th at have a higher concentration of dust, sand an
Description
CDMER–625A Advanced Satellite Modem
Overview
The CDMER–625A is the Environmentally Resistant (ER) version of the CDM–625A. It offers added protection in more aggressive operating environments that have a higher concentration of dust, sand and salt. The ER version uses an application of Urethane Conformal Coating (CC) and critical interface protective covers for enhanced protection against dust, sand and salt. Special protective Conformal Coating and protective covers have been designed to ensure that the CDMER–625A meets MIL–STD–810G requirements including Method 510 Procedure I (Blowing Dust), Method 510 Procedure II (Blowing Sand) and Method 509 (Salt Fog). Both the CC and protective connector covers are non–nutrient fungal growth materials. The ER version also provides an extended operating temperature range of 0 to 60º C. The ER version is not designed to be used in an un–controlled environment or outdoor application. The ER version carries the same two year standard warranty as other Comtech EF Data products. CDM–625A Advanced Satellite Modem builds on our legacy of providing the most efficient and reliable satellite modems. With support for VersaFEC® Forward Error Correction (FEC), the revolutionary DoubleTalk Carrier–in–Carrier bandwidth compression, additional rolloffs and advanced packet processing, the CDM–625A provides significant savings uer all conditions. This combination of advanced technologies enables multi–dimensional optimization, allowing satellite communications users to:
• Minimize operating expenses (OPEX)
• Maximize throughput without using additional transponder resources
• Maximize availability (margin) without using additional transponder resources
• Minimize capital expenses (CAPEX) by allowing a smaller BUC/HPA and/or antenna
• Or, a combination to meet specific business needs
Features
• Environmentally Resistant (ER)
• DoubleTalk Carrier–in–Carrier bandwidth compression
• Carrier–in–Carrier Automatic Power Control
• VersaFEC–2 High Performance LDPC with Adaptive Coding and Modulation (ACM), Short Block and Long Block
• VersaFEC FEC with Adaptive Coding and Modulation (ACM)
• 5%, 10%, 15%, 20%, 25% and 35% Filter Rolloff<
Overview
The CDMER–625A is the Environmentally Resistant (ER) version of the CDM–625A. It offers added protection in more aggressive operating environments that have a higher concentration of dust, sand and salt. The ER version uses an application of Urethane Conformal Coating (CC) and critical interface protective covers for enhanced protection against dust, sand and salt. Special protective Conformal Coating and protective covers have been designed to ensure that the CDMER–625A meets MIL–STD–810G requirements including Method 510 Procedure I (Blowing Dust), Method 510 Procedure II (Blowing Sand) and Method 509 (Salt Fog). Both the CC and protective connector covers are non–nutrient fungal growth materials. The ER version also provides an extended operating temperature range of 0 to 60º C. The ER version is not designed to be used in an un–controlled environment or outdoor application. The ER version carries the same two year standard warranty as other Comtech EF Data products. CDM–625A Advanced Satellite Modem builds on our legacy of providing the most efficient and reliable satellite modems. With support for VersaFEC® Forward Error Correction (FEC), the revolutionary DoubleTalk Carrier–in–Carrier bandwidth compression, additional rolloffs and advanced packet processing, the CDM–625A provides significant savings uer all conditions. This combination of advanced technologies enables multi–dimensional optimization, allowing satellite communications users to:
• Minimize operating expenses (OPEX)
• Maximize throughput without using additional transponder resources
• Maximize availability (margin) without using additional transponder resources
• Minimize capital expenses (CAPEX) by allowing a smaller BUC/HPA and/or antenna
• Or, a combination to meet specific business needs
Features
• Environmentally Resistant (ER)
• DoubleTalk Carrier–in–Carrier bandwidth compression
• Carrier–in–Carrier Automatic Power Control
• VersaFEC–2 High Performance LDPC with Adaptive Coding and Modulation (ACM), Short Block and Long Block
• VersaFEC FEC with Adaptive Coding and Modulation (ACM)
• 5%, 10%, 15%, 20%, 25% and 35% Filter Rolloff<
技术资料下载 (Technical Downloads)
Additional information
| Weight | 4.9 kg |
|---|---|
| Dimensions | 44.8 × 48 × 4.4 cm |
| Brand | Comtech |
| Weight | 4.90 |
| Width | 48.00 |
| Height | 4.40 |
| Depth | 44.80 |
