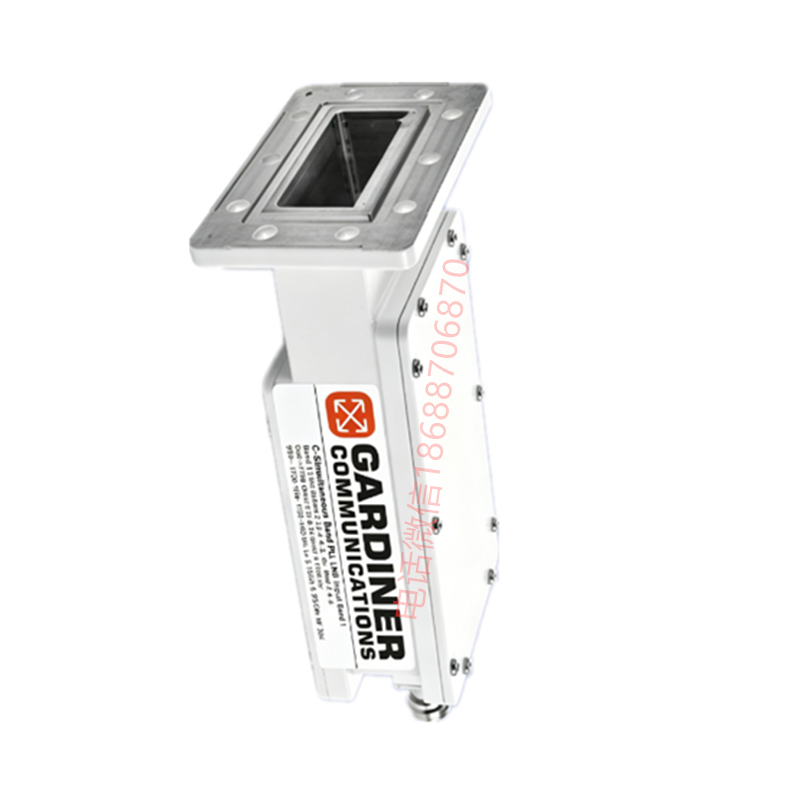

C-Simultaneous Band PLL LNB,高频头,GARDINER

Description

HS3000 series : Internal reference

HS3000X series : External reference

Model No. & Frequency (Customized frequency available)

Model No. HS3000(X)	Band Band 1 Band 2		Input Freq. (GHz) 3.4 – 4.2 4.5 – 4.8	Output Freq. (MHz) 950 – 1750 1150 – 1450	L. O Freq. (GHz) 5.15 5.95
Technical Specifications
Parameter Noise temperature		Specification 30’K typ. 35’K max.		Parameter Ext. input frequency & power	Specification 10 MHz, -5 to +5 dBm
Conversion gain		60 dB typ.		Ext. input port	IF connector (each band)
		(55 dB min. 65 dB max.)		Input VSWR	3.0 : 1 max.
Gain flatness		5 dBp-p max.		Output VSWR	2.5 : 1 max.
Gain ripple at 36 MHz		1 dBp-p max.		Input waveguide flange	CPR 229G (with groove)
L.O. stability		Internal : ±5, 10, 25 kHz max.		Output connector	F or N-type female
		External : depends on ext. ref.		Power supply	+12 to +24 VDC (each band)
Image rejection		40 dBc min.		Required current	250 mA max. (each band)
Phase noise		-73 dBc/Hz at 1 kHz		Operating temperature	-40 to +60℃
		-83 dBc/Hz at 10 kHz		Waterproof	IP 67
		-95 dBc/Hz at 100 kHz		Dimension	98.8 x 70.0 x 165.0 mm
Output P1dB How to model		+5 dBm min.		Weight	780 g
HS3 25 X F Connector ———————- F : F-type female, N : N-type female 10 MHz Reference ————– Blank : Internal, X : External reference LO Stability ——————— 00 : External, 05 : ±5 kHz, 10 : ±10 kHz, 25 : ±25 kHz max. C-Simultaneous band PLL LNB Mechanical Diagram
