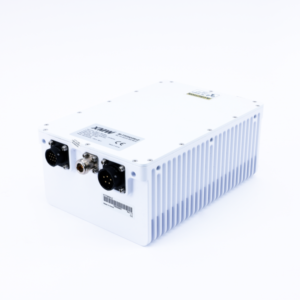

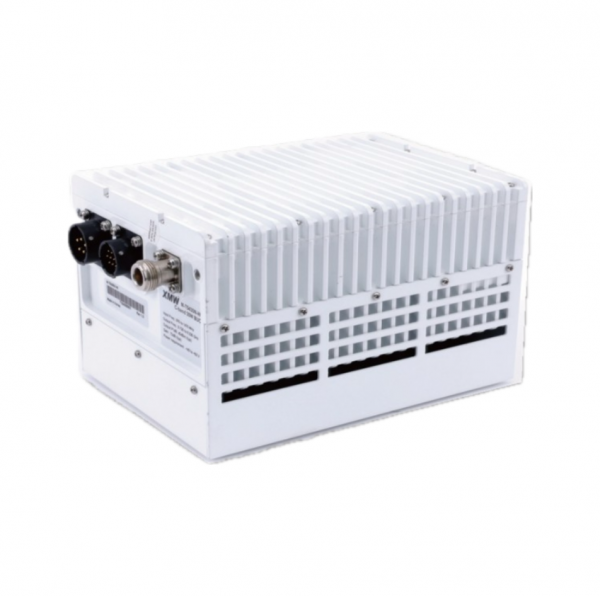

C-band 30W BUC Mobility

Description

Part number: M-T5030 M-T5130 M-T5230 M-T5330 M-T5430 M-T6030
Input Frequency: 950 – 1250 MHz 950 – 1750 MHz 950 – 1825 MHz 950 – 1750 MHz 975 – 1475 MHz 975 – 1975 MHz 950 – 1250 MHz
LO Frequency: 4.9 GHz 4.9 GHz 4.9 GHz 4.775 GHz 4.75 GHz 5.775 GHz
Output Frequency: 5.85 – 6.425 GHz 5.85 – 6.65 GHz 5.85 – 6.725 GHz 5.725 – 6.525 GHz 5.725 – 6.225 GHz 6.725 – 7.025 GHz
Output Power: 30W (45dBm) @
Phase Noise: @1KHz -73dBc
Gain: 72dB Δ15dB 0.5dB step
AC/DC Power: +48VDC 200W
