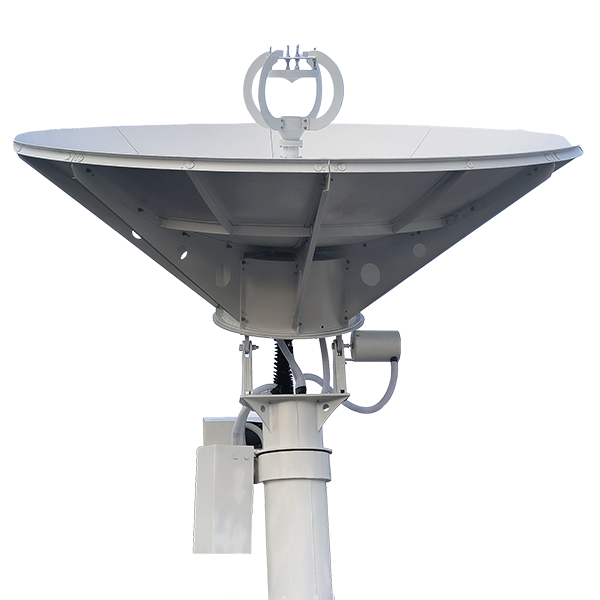

Description
Specifications
KEY SPECIFICATIONS
| antenna aperture | 2.4m |
|---|---|
| antenna category | Earth Station |
| band | Ka-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna drive mode | 2-axis motorized structure |
|---|---|
| antenna type | Ring Focus |
| number of ports | 2-ports |
| polarization | Circular |
| Rx axial ratio 2 ports | ≤1.5 dB |
| sidelobe | ≤-14dB; 29 – 25 logθ(1°≤θ＜20°) |
| Tx axial ratio 2 ports | ≤1.5 dB |
RF SPECIFICATIONS
| noise temperature elevation 10° | 124.5 K |
|---|---|
| noise temperature elevation 20° | 86 K |
| noise temperature elevation 40° | 60 K |
| port isolation Rx-Tx | 85 dB |
| Rx feed insertion loss | 0.6 dB |
| Rx frequency | 17.70 – 21.20 GHz |
| rx gain | 51.4 @ 19.95GHz |
| Rx VSWR | 1.35 : 1 |
| Tx feed insertion loss | 0.6 dB |
| Tx frequency | 27.50 – 31.00 GHz |
| tx gain | 54.73 @ 29.25GHz |
| Tx VSWR | 1.35 : 1 |
ELECTRICAL SPECIFICATIONS
| power capacity | 2 KW |
|---|
INTERFACE SPECIFICATIONS
| Rx interface | WR-42 |
|---|---|
| Tx interface | WR-28 |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 1.0 |
|---|---|
| ice load | Icing 13mm: normal work; Icing 25mm: no damage |
| seismic capacity horizontal | 0.3 G |
| seismic capacity vertical | 0.1 G |
| temperature operational | -30°C to +50°C |
| windspeed operational | 72 km/h |
| windspeed survival | 216 km/h |
PHYSICAL SPECIFICATIONS
| loading capacity | 8 sets for one 20ft container; 16 sets for one 40ft container |
|---|---|
| motion range AZ | 5° – 355° (continuous) |
| motion range EL | 5° – 90° |
| motion range POL | ±90° |
| product package volume | 2 packages, dimension: 2.5 CBM |
| product weight | 300 kg |
| RMS | ≤0.3 mm |
| structure | EL over AZ |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | 5A991.B |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | 310 kg |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
