Description
Specifications

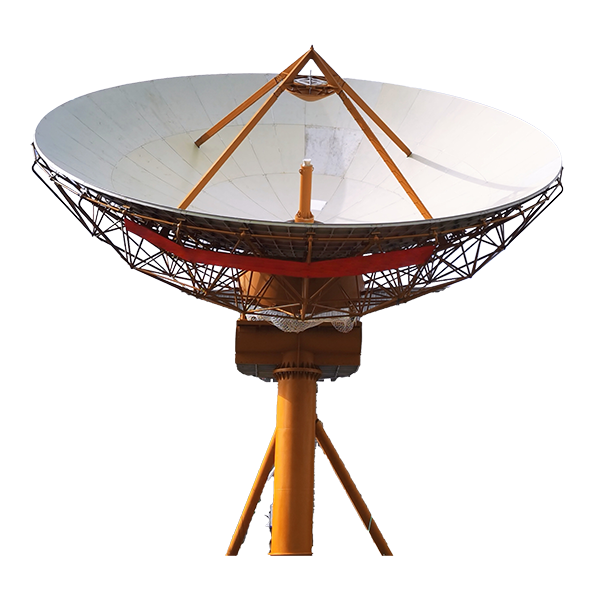

KEY SPECIFICATIONS
| antenna aperture | 13.0m |
|---|---|
| antenna category | Earth Station |
| band | Ka-Band |
| Product Revision | A |
ANTENNA SPECIFICATIONS
| antenna drive mode | 2-axis motorized structure |
|---|---|
| antenna type | Cassegrain |
| number of ports | 4-ports |
| polarization | Circular |
| Rx axial ratio 2 ports | ≤1.5 dB |
| Rx axial ratio 4 ports | ≤1 dB |
| sidelobe | ≤-14dB; 29 – 25 logθ(1°≤θ＜20°) |
| Tx axial ratio 2 ports | ≤1.5 dB |
| Tx axial ratio 4 ports | ≤0.75 dB |
RF SPECIFICATIONS
| noise temperature elevation 10° | 129 K |
|---|---|
| noise temperature elevation 20° | 90K |
| noise temperature elevation 50° | 65K |
| port isolation Rx-Tx | ≥85 dB |
| Rx feed insertion loss | ≤0.8dB |
| Rx frequency | 17.70 – 21.20 GHz |
| rx gain | ≥66.03+20lg(f/19.0GHz) |
| Rx VSWR | 1.35 : 1 |
| Tx feed insertion loss | ≤0.9dB |
| Tx frequency | 27.50 – 31.00 GHz |
| tx gain | ≥69.70+20lg(f/29.0GHz) |
| Tx VSWR | 1.35 : 1 |
ELECTRICAL SPECIFICATIONS
| power capacity | 2 KW |
|---|
INTERFACE SPECIFICATIONS
| Rx interface | FBP-220(WR-42) |
|---|---|
| Tx interface | FBP-320(WR-28) |
ENVIRONMENTAL SPECIFICATIONS
| humidity | 1.0 |
|---|---|
| temperature operational | -30°C to +70°C |
| windspeed operational | 72 km/h |
| windspeed survival | 120km/h |
PHYSICAL SPECIFICATIONS
| motion range AZ | 5° – 355° |
|---|---|
| motion range EL | 5° – 90° |
| motion range POL | ±90° |
| RMS | ≤0.3 mm |
INFORMATION
| HS Code | 8529109090 |
|---|---|
| Country of Origin | Made in China |
| Ex Works | Hong Kong |
| ECCN Number | 5A991.B |
| Warranty | 1 year |
| Dangerous Goods | – |
| Unit Package Dimensions | – |
| Unit Package Weight | – |
| Total Aluminium Content | 0 kg |
| Aluminum Country of Smelt and Cast | – |
| Total Aluminium Value | $ 0 |
