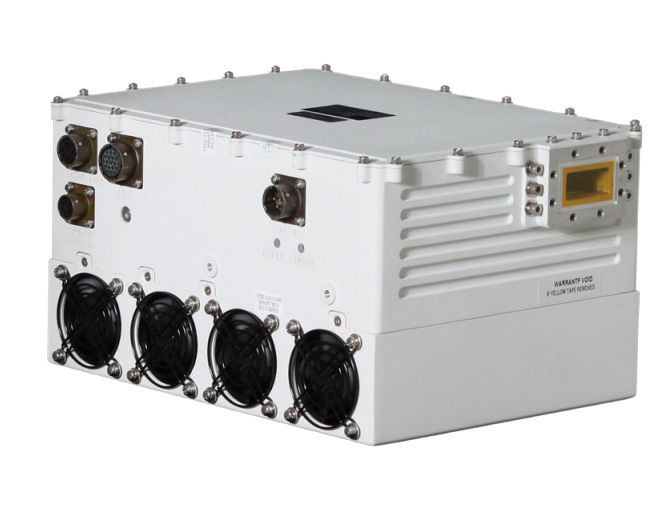

Agilis ALB290FCH-100J-3 ALB290 Series 100W 1:1 C-Band VSAT Outdoor Block-Up Converter N Input (BUC)
¥287,414.00
Agilis ALB290FCH-100J-3 ALB290 Series 100W 1:1 C-Band VSAT Outdoor Block-Up Converter N Input (BUC) | Output Power: 100W | Band: C-Band
Description
| RF Specifications | |
| Transmit Frequency | Full C |
| IF Frequency Range | FULL C Tx : 5.850 to 6.725GHz IF : 950 to 1825MHz LO : 7675MHz / 4900MHZ |
| Output Power @ Psat | 50dBm (100W) |
| Small Signal Gain | 70dB min |
| Gain Flatness | ±2dB over the O/P frequency band |
| Gain Variation | ±1.5dB over the operating temperature range |
| Gain Control | 30dB in step of 0.1dB |
| Inter Modulation | -25dBc @ Relative to combine power of two carriers at 3dB total power backoff from Rated Output power |
| O/P spurious | According to EN301443 |
| Phase Noise @ Offset | |
| 1KHz 10KHz 100KHz |
-80dBc/Hz -90dBc/Hz -100dBc/Hz |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.5:1 |
| Noise Power Density Tx BD | 70dBm/ 4KHz |
| Rx BD | 142dBm/ 4KHz |
| DC Power Requirement | |
| Prime Power | 90 – 264VAC, 50 – 60Hz |
| Power Consumption | 600W (Typical for 100W), 800W (Typical for 150W), 1000W (Typical for 200W) |
| Interfaces | |
| IF Input Interface | 50Ohms N-type Female |
| Output Interface | CPRG 137G |
| External Reference Requirement | |
| Frequency | 10MHz |
| Power | -5dBm to +5dBm |
| Internal 10MHz Ref | Built-in (auto-detection) |
| External reference phase noise requirement @ frequency offset | |
| 1kHz 10kHz 100kHz |
-150dBc/Hz -155dBc/Hz -160dBc/Hz |
| Monitor & Control | |
| Monitor | BUC Temperature, Status Alarm, RF Output Power/RF Input Power, RF Reflected Output Power, LED Status Indication |
| Control | Attenuation, RF output mute |
| Interface | RS232/485, Ethernet (SNMP & HTTP) & Wifi (Optional) |
| Tx Redundancy | Built-in |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100%, Weather protection sealed to IP65 |
| Mechanical | |
| Size | 284L x 209W x 164H |
| Weight | 9kg |
| Color | White Powder Coa |
Additional information
| Weight | 9 kg |
|---|---|
| Dimensions | 20.9 × 28.4 × 16.4 cm |
| Series | ALB290 Series |
| Brand | Agilis |
| Gain Flatness | ±2dB over the O/P frequency band |
| Inter-Modulation | -25dBc @ Relative to combine power of two carriers at 3dB total power backoff from Rated Output power |
| IF Input Interface | 50Ohms N-type Female |
| Frequency Band | 10MHz |
| Monitor & Control | BUC Temperature, LED Status Indication; Attenuation, RF Output Mute, RF Output Power/RF Input Power, RF Reflected Output Power, Status Alarm |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100%, Weather protection sealed to IP65 |
| Size | 284L x 209W x 164H |
| Weight | 9kg |
| Small Signal Gain | 70dB min |
| Gain Variation | ±1.5dB over the operating temperature range |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.5:1 |
| Prime Power | 50 – 60Hz, 90 – 264VAC |
| Power Consumption | 1000W (Typical for 200W), 600W (Typical for 100W), 800W (Typical for 150W) |
| Output Interface | CPRG 137G |
| Power | -5dBm to +5dBm |
| Interface | Ethernet (SNMP & HTTP) & WiFi (Optional), RS232/485 |
| Tx Redundancy | Built-in |
| Color | White Powder Coa |
| Transmit Frequency | Full C |
| IF Frequency Range | FULL CTx : 5.850 to 6.725GHzIF : 950 to 1825MHzLO : 7675MHz / 4900MHZ |
| Output Power | |
| Gain Control | 30dB in step of 0.1dB |
| Spurious | According to EN301443 |
| Reference | Built-in (auto-detection) |
| Rx BD | 142dBm/ 4KHz |
| Noise Power Density Tx BD | 70dBm/ 4KHz |
| 1KHz10KHz100KHz | -150dBc/Hz-155dBc/Hz-160dBc/Hz |
