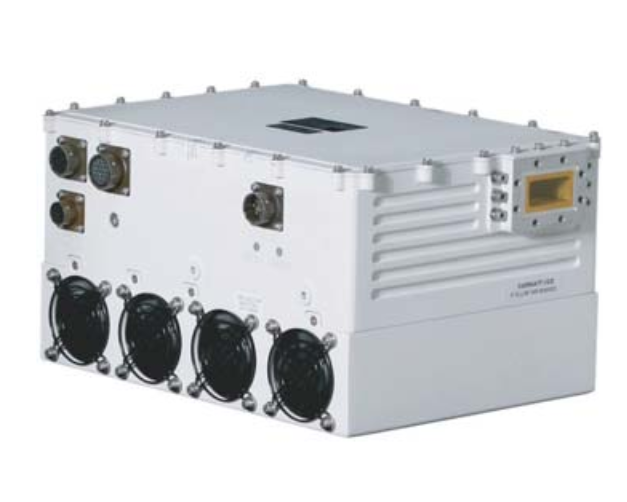

Agilis ALB190ACH-200J Compact 200W ALB190 Series Intelsat C-Band High Power Block-Up Converter N Input (BUC)
¥163,529.00
Agilis ALB190ACH-200J Compact 200W ALB190 Series Intelsat C-Band High Power Block-Up Converter N Input (BUC) | Output Power: 200W | Band: C-Band
Description
This small and lightweight BUC is ideal for mobile and satellite uplink applications.
The BUC has excellent efficiency and consumes less than 950W for 200W RF power. Innovative and efficient thermal design makes this BUC one of the smallest in the industry.
Built-in redundancy-ready feature eliminates the use of an external controller for 1:1 redundancy operation. This eliminates messy cabling at the antenna making this a very elegant solution.
Extensive M/C interface with RS232/485, Ethernet (SNMP & HTTP) and Wifi.
Features
- Compact and lightweight
- Available for all C-Band frequencies
- Forward & reverse power detection facility
- Input power detection facility
- Intuitive monitoring & control through RS232/485, Ethernet (SNMP & HTTP)
- Automatic fault identification & alarm generation
- Temperature compensation facility
- Built-in redundancy facility
- Built-in 10MHz reference with auto-detection
- Built-in harmonics reject filter
- Sample port for output monitoring
- Wide operating temperature range -40°C to +60°C
- RoHS Compliant
- Waterproof
Quality Assurance
100% of all BUCs go through stringent quality checks in addition to well defined Electrical Stress Screening to ensure operation in harsh outdoor environments. The BUCs are also subjected to seal test for water ingress verification.
Reliability
Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40°C to +60°C with up to 100% humidity.
Frequency Band
-
INTELSAT
- LO: 7375MHz / 4900MHz
- IF: 950 to 1525MHz
- Tx: 5.850 to 6.425GHz
| RF Specifications | |
| Transmit Frequency | Intelsat |
| IF Frequency Range | Refer to Table 1 |
| Output Power @ P1dB | 53dBm (200W) |
| Small Signal Gain | 70dB Min |
| Gain Flatness | ±2dB over the OP frequency band |
| Gain Variation | ±1.5dB over the operating temperature range |
| Gain Control | 30dB in step of 0.1dB |
| Inter Modulation | -25dBc @ Relative to combine power of two carriers at 3dB total power backoff from P1dB |
| O/P spurious | According to EN301443 |
| Phase Noise @ Offset | 1KHz: -80dBc/Hz, 10KHz: -90dBc/Hz, 100KHz: -100dBc/Hz |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.5:1 |
| Noise Power Density Tx BD | 70dBm/ 4KHz |
| Noise Power Density Rx BD | 142dBm/ 4KHz |
| DC Power Requirement | |
| Prime Power | 90 – 264VAC, 50 – 60Hz |
| Power Consumption | 950W (Typical for 200W) |
| Interfaces | |
| IF Input Interface | 50Ohms N-type Female |
| Output Interface | CPRG 137G |
| External Reference Requirement | |
| Frequency | 10MHz |
| Power | -5dBm to +5dBm |
| Internal 10MHz Ref | Built-in (auto-detection) |
| External Reference Phase Noise Requirement @ Frequency Offset | 1kHz: -150dBc/Hz, 10kHz: -155dBc/Hz, 100kHz: -160dBc/Hz |
| Monitor & Control | |
| Monitor | BUC Temperature, Status Alarm, RF Output Power/RF Input Power, RF Reflected Output Power, LED Status Indication |
| Control | Attenuation, RF Output Mute |
| Interface | RS232/485, Ethernet (SNMP & HTTP) & WiFi (Optional) |
| Tx Redundancy | Built-in |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% Weather Protection Sealed to IP65 |
| Mechanical | |
| Size | 284L x 209W x 175H |
| Weight | 11.5kg |
| Color | White Powder Coat |
Additional information
| Weight | 11.5 kg |
|---|---|
| Dimensions | 20.9 × 28.4 × 17.5 cm |
| Series | ALB190 Series |
| Brand | Agilis |
| Gain Flatness | ±2dB over the OP frequency band |
| Inter-Modulation | -25dBc @ Relative to combine power of two carriers at 3dB total power backoff from P1dB |
| IF Input Interface | 50Ohms N-type Female |
| Frequency Band | 10MHz |
| Monitor & Control | BUC Temperature, LED Status Indication; Attenuation, RF Output Mute, RF Output Power/RF Input Power, RF Reflected Output Power, Status Alarm |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% Weather protection sealed to IP65 |
| Size | 284L x 209W x 175H |
| Weight | 11.5kg |
| Small Signal Gain | 70dB min |
| Gain Variation | ±1.5dB over the operating temperature range |
| I/P VSWR | 1.5:1 |
| O/P VSWR | 1.5:1 |
| Prime Power | 50 – 60Hz, 90 – 264VAC |
| Power Consumption | 950W (Typical for 200W) |
| Output Interface | CPRG 137G |
| Power | -5dBm to +5dBm |
| Interface | Ethernet (SNMP & HTTP) & WiFi (Optional), RS232/485 |
| Tx Redundancy | Built-in |
| Color | White Powder Coat |
| Transmit Frequency | Intelsat |
| IF Frequency Range | Refer to Table 1 |
| Output Power | |
| Gain Control | 30dB in step of 0.1dB |
| Spurious | According to EN301443 |
| Reference | Built-in (auto-detection) |
| Noise Power Density Tx BD | 70dBm/ 4KHz |
| Phase Noise | 100kHz: -160dBc/Hz, 10kHz: -155dBc/Hz, 1kHz: -150dBc/Hz |
| Noise Power Density Rx BD | 142dBm/ 4KHz |
