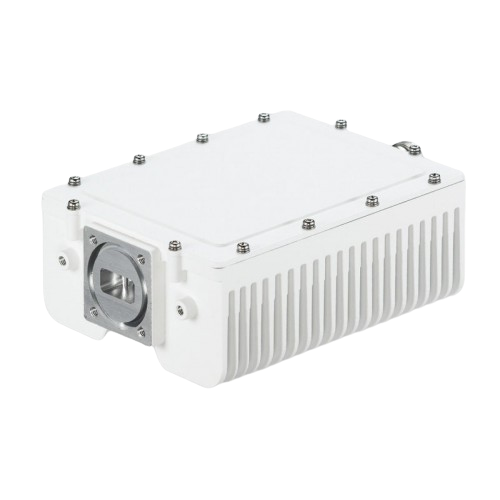

Agilis ALB150AFG-40B ALB150 Series 40W X-Band VSAT Outdoor Block-Up Converter N Input (BUC)
¥78,296.00
Agilis ALB150 Series 40W X-Band VSAT Outdoor Block-Up Converter (BUC). Compact, lightweight, feed-mountable; ideal for mobile and satellite uplink applications. RoHS compliant, IP65 sealed, 1:1 redundancy-ready.
Description
| Summary | ||||||||||||||||||||||||||||
| This small and lightweight BUC is ideal for mobile and satellite uplink applications. Designed to be mounted on the feed horn, the BUC has excellent efficiency and consumes less than 250W for 50W X-Band BUC. The unit works on a wide range DC power supply of 38V to 60V. The BUC is able to work up to 60ºC. Innovative and efficient thermal design makes this BUC one of the smallest, lightest and most reliable in the industry.With redundancy-ready feature, the unit can be easily configured to work in 1:1 redundant mode. |
||||||||||||||||||||||||||||
| Features | ||||||||||||||||||||||||||||
| • Compact and lightweight • Feed mountable • Wide operating temperature range -40ºC to +60ºC • Wide input DC voltage range 38V to 60V • Standard remote monitor & control through RS485, optional Ethernet (SNMP & HTTP) • Excellent linearity • Extremely reliable • High power efficiency • Available for all X-Band frequency ranges • Excellent phase noise characteristics • Low spurious • Forward power detection facility • Automatic fault identification & alarm generation • Automatic temperature compensation feature • Redundancy ready • RoHS compliant • Waterproof with IP65 standard • LED indicator for BUC status |
||||||||||||||||||||||||||||
| Reliability | ||||||||||||||||||||||||||||
| Field proven under harsh environment conditions, Agilis ODUs can withstand temperature ranging from -40ºC to +60ºC with up to 100% humidity. | ||||||||||||||||||||||||||||
| Quality Assurance | ||||||||||||||||||||||||||||
| 100% of all BUCs go through stringent quality checks in addition to well defined Electrical Stress Screening to ensure operation in harsh outdoor environments. The BUCs are also subjected to seal test for water ingress verification. | ||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
|
||||||||||||||||||||||||||||
Additional information
| Weight | 4 kg |
|---|---|
| Dimensions | 23.4 × 17.1 × 8.7 cm |
| Brand | Agilis |
| Series | ALB150 |
| Band | |
| Output Power | |
| Transmit Frequency | 7900-8400 MHz |
| IF Frequency Range | 950-1450 MHz |
| L.O. Frequency | 6.95 GHz |
| Small Signal Gain | 73 dB |
| Gain Flatness | ±2 dB over O/P band |
| Gain Control | 15 dB in 0.5 dB steps |
| Inter-Modulation | -25 dBc @ 3 dB total backoff from rated output |
| I/P VSWR | 2.0:1 max |
| O/P VSWR | 2.0:1 max |
| Prime Power | 48 VDC (38-60 VDC range) |
| Power Consumption | 220W @ 48VDC (typical for 40W) |
| IF Input Interface | 50Ω N-type Female / 75Ω F-type (optional) |
| Output Interface | WR 112G (WR112 waveguide) |
| External Reference | -5 to +5 dBm, 10 MHz |
| Monitor & Control | RS232/RS485 (Standard); Ethernet SNMP/HTTP (Optional) |
| Tx Redundancy | 1:1 Redundancy-ready |
| Operating Temperature | -40°C to +60°C |
| Humidity | IP65 sealed, Up to 100% |
| Size (mm) | 234L x 171W x 87H mm |
| Weight | 4.0 kg |
| Color | White Powder Coat |
| Condition | New |
