Agilis ALB1292C7-200E-D1-3 ALB129 Series 200W Ext. Ku-Band Block-Up Converter (BUC)
¥891,976.00

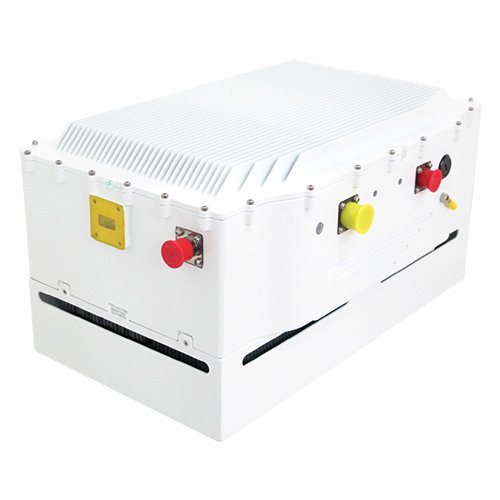

Agilis ALB1292C7-200E-D1-3 ALB129 Series 200W Ext. Ku-Band Block-Up Converter (BUC) Ideal for mobile and satellite uplink applications. Innovative and excellent efficiency thermal design makes this BUC one of the most…
Description
Agilis ALB1292C7-200E-D1-3 ALB129 Series 200W Ext. Ku-Band Block-Up Converter (BUC)
Ideal for mobile and satellite uplink applications. Innovative and excellent efficiency thermal design makes this BUC one of the most power efficient, robust and reliable to operate under harsh outdoor environment. Simple and seamless 1+1 redundancy setup. Built-in redundancy-ready easily configured without need of external controller.
Features
- Forward and reflected power detection
- Output sample port monitoring
- Monitoring and Control through Serial and Ethernet ports
- Fault identification and alarm generation
- LED status and alarm indicator
- Auto gain control throughout operating temperature
- Auto reference detection and switching option
- Built-in receive reject filter
- Built-in redundancy ready
- Wide operating temperature -40°C to +60°C
- IP65 Weatherproof
- RoHS Compliant
Quality Assurance
100% thorough stringent quality checks in addition to well-defined Environmental Stress Screening to ensure operation in harsh outdoor environment conditions. All subjected to seal test for water ingression verification.
Reliability
Field proven under harsh environment conditions. Agilis ODUs can withstand temperature ranging from -40°C to +60°C under 100% humidity.
| Band | 13.75-14.50 GHz |
| IF | 950-1700 MHz |
| LO | 12.80 GHz |
| Output Power | |
| Psat | 53.0 dBm (200W) |
| Small Signal Gain | 80 dB min |
| Gain Flatness | +2 dB within band |
| ±1 dB over 40 MHz | |
| Gain Variation | +2 dB within band over operating temperature |
| Intermodulation | -25 dBc max @ Plinear |
| Spurious | -60 dBc max |
| Phase Noise | -95 dBc/Hz max @ 100KHz offset -85 dBc/Hz max @ 10KHz offset -75 dBc/Hz max @ 1KHz offset |
| VSWR | 1.5:1 max @ input |
| 1.25:1 max @ output | |
| Noise Power Density | Tx Band: -70 dBW/4KHz max |
| Rx Band: -142 dBW/4KHz max | |
| AC/DC Power | |
| Prime Power | 90 to 264 Vac, 47 to 63 Hz (150W) |
| 180 to 264 Vac, 47 to 63 Hz (200W/250W) | |
| Power Consumption | 1600 VA max. @ 150W |
| 2500 VA max. @ 200W/250W | |
| Interface | |
| IF Input | N-Type Female 500 |
| RF Output | WR75 Square Grooved |
| Reference Requirement | |
| Frequency | 10 MHz |
| Source | Internal |
| Internal/External Auto Switching (Option) | |
| Ext Ref Power Level | -5dBm to +5dBm |
| Monitor | |
|
|
| Control | |
|
20dB with 0.5dB step |
|
Yes |
| Communication Port |
Serial RS232/RS485, Ethernet (SNMP & HTTP) |
| Transmit Redundancy | Built-In |
| Environmental | |
| Operating Temperature | -40°C to +60°C |
| Relative Humidity | Up to 100% |
| Weatherproof | IP65 |
| Mechanical | |
| Dimension (excluding interface connectors) |
L600 x W310 x H205mm (200W) |
| Weight |
28Kg/62lbs (200W) |
Datasheets / 技术资料下载
Additional information
| Weight | 28 kg |
|---|---|
| Dimensions | 20.5 × 60 × 31 cm |
| Brand | Agilis |
| Model | ALB1292C7-200E-D1-3 |
| Series | ALB 129 Series |
| Frequency Band | Ku-Band |
| IF Frequency | 950-1700 MHz |
| LO Frequency | 12.80 GHz |
| Output Power | |
| Small Signal Gain | 80 dB min |
| Gain Flatness | +2 dB within band |
| Gain Variation | +2 dB within band over operating temperature |
| Gain Control | 20dB with 0.5dB step |
| Intermodulation | -25 dBc max @ Plinear |
| Spurious | -60 dBc max |
| Phase Noise | -95 dBc/Hz max @ 100KHz offset -85 dBc/Hz max @ 10KHz offset -75 dBc/Hz max @ 1KHz offset |
| VSWR | 1.5:1 max @ input |
| Noise Power Density | Tx Band: -70 dBW/4KHz max |
| Prime Power | 47 to 63 Hz (150W), 90 to 264 Vac |
| Power Consumption | 1600 VA max. @ 150W |
| IF Input Interface | N-Type Female 500 |
| RF Output Interface | WR75 Square Grooved; Yes |
| Reference | 10 MHz; Internal; -5dBm to +5dBm |
| Communication Port | Ethernet (SNMP & HTTP), Serial RS232/RS485 |
| Redundancy | Built-In |
| Operating Temperature | -40°C to +60°C |
| Humidity | Up to 100% |
| Ingress Protection | IP65 |
| Dimensions | L600 x W310 x H205mm (200W) |
| Weight | 28.00 kg |
