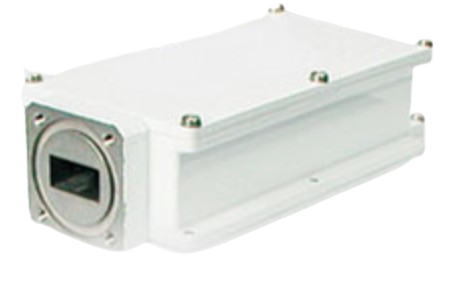

Agilis ACA Series C-Band VSAT Outdoor Low Noise Block N-Type (LNB)

Description

Overview

Agilis ACA Series C-Band Outdoor C-Band Low Noise Block (LNB) offers premium performance and reliability in the most versatile package available for a LNB. The latest technology used produces the lowest possible noise temperature in an uncooled LNB. System performance is enhanced by outstanding gain stability and gain flatness.

Agilis LNB is housed in a weatherproof enclosure with a small profile to better accommodate redundancy configuration.

They are specially designed for satellite earth station receiver front ends and other applications. Utilizing state-of-the-art technology, Agilis LNBs have been designed for both fixed and transportable applications. High performance models are available in several standard frequency ranges.

• Available for all C-Band frequencies
• Excellent gain flatness and gain stability
• Low current consumption
• High/Small Signal gain
• Wide gain control range
• Low noise figure Field proven with system deployed worldwide, Agilis LNB control unit can withstand temperature from -40ºC to +60ºC up to 100% humidity. All Agilis ACUs are designed and manufactured according to ISO 9001 Standard. All Agilis ODUs go through intensive active electrical stress screening with performance being monitored. In addition, all units undergo 100% waterproof test equivalent to IP65 to ensure normal operation during tropical, cold and harsh environment.

AGILIS ACA Series C-Band VSAT Outdoor Low Noise Amplifier N Output (LNA) Specifications

Technical Specifications

Input

INPUT FREQUENCY (GHz)
Intelsat Gorizont Insat ST-1/Palapa C Full-C	3.625 to 4.200 / 3.400 to 3.950 / 4.500 to 4.800 / 3.400 to 3.700 / 3.400 to 4.200
NOISE TEMPERATURE @ 25°C	45°K typ
INPUT VSWR	2:5:1 typ

Local Oscillator

LOCAL OSCILLATOR FREQUENCY (GHz)
PHASE NOISE (SSB)
@100Hz / @1KHz / @10KHz / @100KHz / @1MHz	-70dBc/Hz / -80dBc/Hz / -85dBc/Hz / -90dBc/Hz / -105dBc/Hz
EXTERNAL REFERENCE
Input Frequency	10MHz typ
Input Power	-10 to 0dBm
Phase Noise
@100Hz / @1KHz / @10KHz	-135dBc/Hz / -145dBc/Hz / -150dBc/Hz

Output

OUTPUT FREQUENCY (GHz)
Intelsat / Gorizont / Insat / ST-1/Palapa C / Full-C	950 to 1525 / 950 to 1500 / 960 to 1260 / 950 to 1250 / 950 to 1750
VSWR	1:07:01
OUTPUT IMPEDANCE	50Ω
GAIN @ 25ºC	63dB typ
GAIN FLATNESS
Full Band	4dB max
Full C-Band	5dB max
GAIN STABILITY
Per 40MHz	± 0.5dM max
Per Day Constant Temp.	± 0.2dM max
Per ºC	0.05dB typ
OUTPUT POWER @ P1db	+10dBm min
OUTPUT INTERCEPT POINT	20dBm min
SPURIOUS
Input fixed spur unrelated to CW signal	-140dBm max
With test CW signal -10dBm IF output	– 55dB max
IMAGE REJECTION	60dB min
AM/PM CONVERSION (@-10dBm out)	0.1°/dB max
GROUP DELAY (over 40MHz)
Linear	0.02ns/MHz
Parabolic	0.002ns/MHz
Ripple	0.2ns/MHz typ

Environmental

OPERATING TEMPERATURE	-40ºC to +60ºC
RELATIVE HUMIDITY	100%

Power Supply

DC Voltage	+13 to 28VDC
DC Current	300mA max

Mechanical

INPUT INTERFACE	CPR-229 G
OUTPUT INTERFACE	F-type Female
DIMENSIONS	98.5L x 69.8W x 133.4H mm
WEIGHT	520g
COLOUR	White Powder Coat
