Actox ALB0025N – Ka-Band 25 KHz-Stability PLL LNB, N-Type

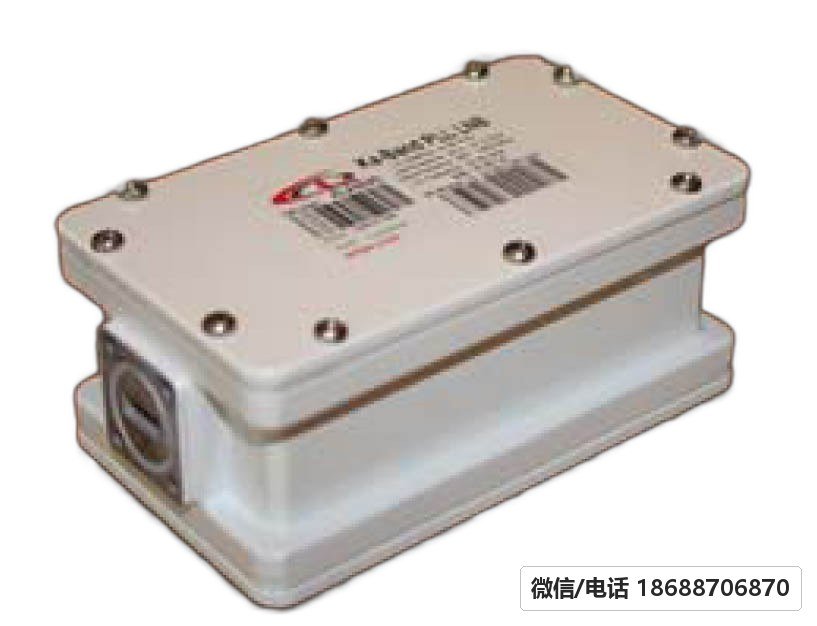

ALB0025N – Ka-Band 25 KHz-Stability PLL LNB

KEY FEATURES:

RF: 19.2 – 20.2 GHz

IF: 950 – 1950 MHz

N / F connector options (50/75 ohms)

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

ALB0025N

19.2 – 20.2 GHz

18.25 GHz

+ /-25 KHz max.

950 – 1950 MHz

N-type

Parameter

Value

Conversion gain

55 dB ty p.(50dB m in. 62dB m ax.)

Input VSWR

2.2 : 1 typ.

IF connector

N-type

RF interface

WR – 42 grooved

Phase noise

-60 dBc/Hz @100 Hz

-80 dBc/Hz @1 KHz

-95 dBc/Hz @10 KHz

Power supply

+12 – +24 VDC

Operating temperature

-30C – +60C

Dimensions(mm)

101 x 60 x 41

Gain flatness

5 dB p-p max.

Output VSWR

2.2 : 1 typ.

IF impedance

75 or 50 ohms

Image rejection

45 dBc min.

Relative humidity

0% to 95%

Leakage

-55 dBm max.

Noise figure

1.5 dB max.

Current

300 mA max.

Storage temperature

-40C – + 80C

Weight (g)

350

Key Specifications

Conversion gain	55 dB ty p.(50dB m in. 62dB m ax.)
Input VSWR	2.2 : 1 typ.
IF connector	N-type
RF interface	WR – 42 grooved
Phase noise	-60 dBc/Hz @100 Hz -80 dBc/Hz @1 KHz -95 dBc/Hz @10 KHz
Power supply	+12 – +24 VDC
Operating temperature	-30C – +60C
Dimensions(mm)	101 x 60 x 41
Gain flatness	5 dB p-p max.
Output VSWR	2.2 : 1 typ.
IF impedance	75 or 50 ohms
Image rejection	45 dBc min.
Relative humidity	0% to 95%
Leakage	-55 dBm max.
Noise figure	1.5 dB max.
Current	300 mA max.
Storage temperature	-40C – + 80C
Weight (g)	350

Documents

• Datasheet / User Manual
