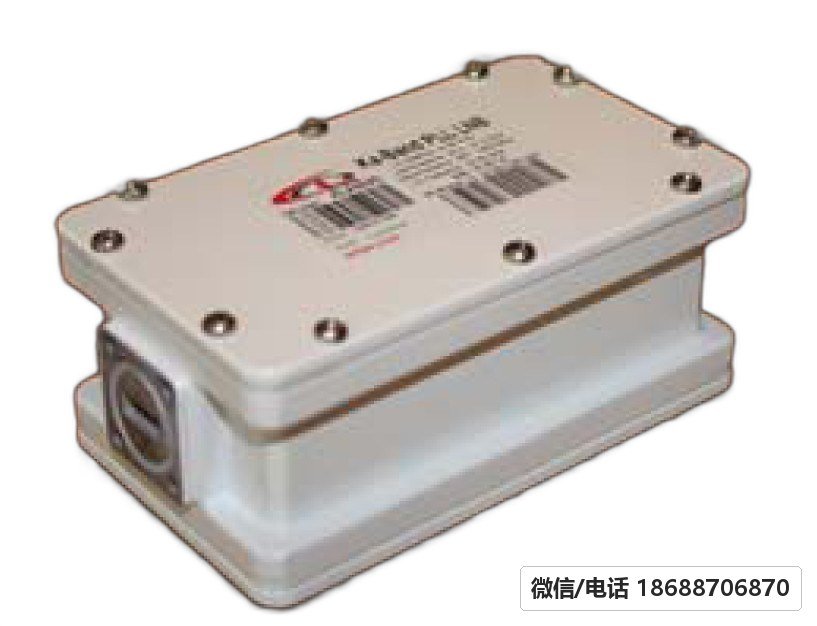

Actox ALAXN – Ka-Band External Reference LNB, N-Type

ALAXN – Ka-Band External Reference LNB

KEY FEATURES:

RF: 18.2 – 19.2 GHz

IF: 950 – 1950 MHz

N / F connector options (50/75 ohms)

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

ALAXN

18.2 – 19.2 GHz

17.25 GHz

Locked Ext. Ref.

950 – 1950 MHz

N-Type

Parameter

Value

Conversion Gain

55 dB ty p.(50dB m in. 62dB m ax.)

Input VSWR

2.2 : 1 typ.

IF Connector

N-Type

RF Interface

WR – 42 Grooved

Phase Noise

Ext. ref. dependent

Power Supply

+12 – +24 VDC

Operating Temperature

-30C – +60C

Ext. ref. frequency

10 MHz

Ext. ref. level

-10 to 0 dBm

Dimentions(mm)

101 x 60 x 41

Gain Flatness

5 dB p-p Max.

Output VSWR

2.2 : 1 Typ.

IF impedance

75 or 50 ohms

Leakage

-55 dBm Max.

Noise Figure

1.5 dB Max.

Current

300 mA Max.

Storage Temperature

-40C – + 80C

Weight (g)

350

Key Specifications

Conversion Gain	55 dB ty p.(50dB m in. 62dB m ax.)
Input VSWR	2.2 : 1 typ.
IF Connector	N-Type
RF Interface	WR – 42 Grooved
Phase Noise	Ext. ref. dependent

Power Supply	+12 – +24 VDC
Operating Temperature	-30C – +60C
Ext. ref. frequency	10 MHz
Ext. ref. level	-10 to 0 dBm
Dimentions(mm)	101 x 60 x 41
Gain Flatness	5 dB p-p Max.
Output VSWR	2.2 : 1 Typ.
IF impedance	75 or 50 ohms
Leakage	-55 dBm Max.
Noise Figure	1.5 dB Max.
Current	300 mA Max.
Storage Temperature	-40C – + 80C
Weight (g)	350

Documents

• Datasheet / User Manual
