Actox AL4XN

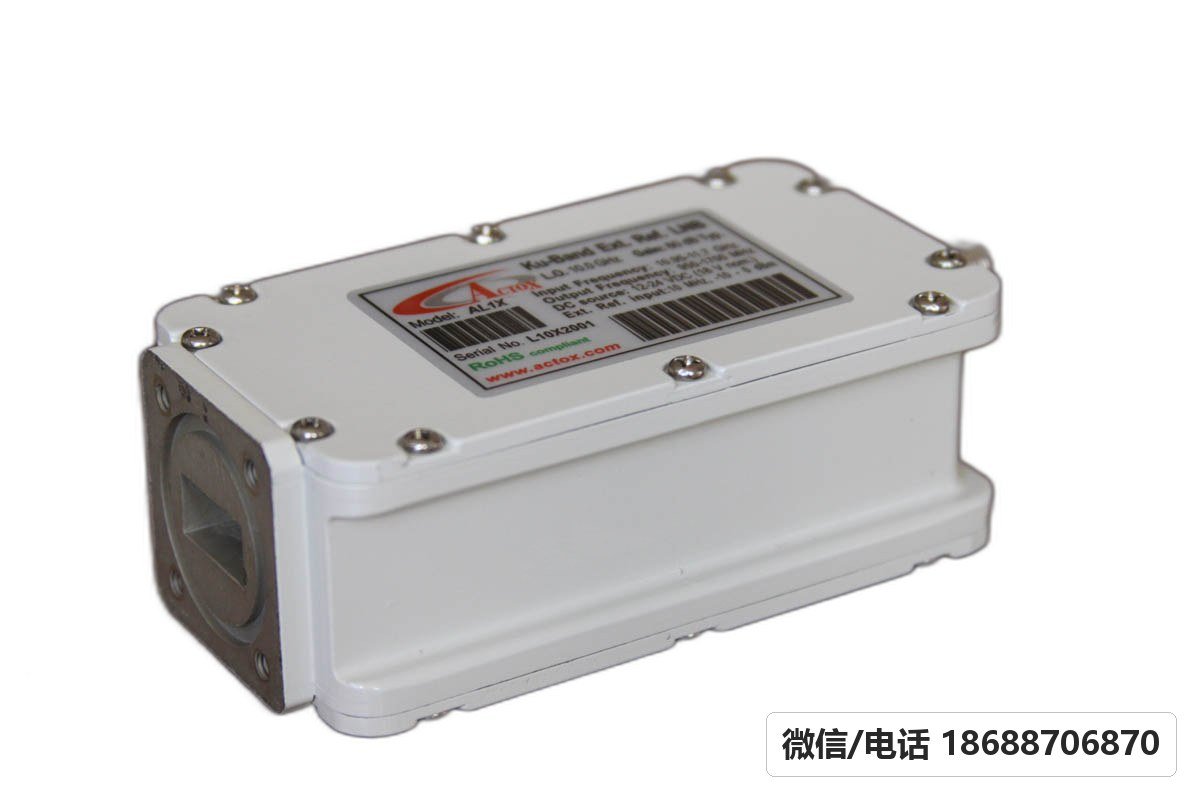

Actox AL4XN – Actox Ext. Ref. Ku-Band LNB

AL4X – Actox Ext. Ref. Ku-Band LNB. This unit is a low noise amplifier and a block down converter (external reference) for use in KU-Band VSAT remote RF terminals

KEY FEATURES

External reference

Smallest package size and weight

N / F connector options (50/75 ohms)

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

AL4XN

12.25 to 12.75 GHz

11.30 GHz

Depends on external reference

950 to 1,450 MHz

N-type

Parameter

Value

Frequency band

12.25 to 12.75 GHz

Input waveguide flange

WR 75 (Grooved)

Input V.S.W.R.

2.5:1 typ.

Noise figure (Ta=+25 C)

0.8 – 0.9 dB max.

Output frequency

950 to 1450 MHz

Conversion gain

55 dB typ. @ +25C

2 dB max. in any 50 MHz segment over frequency band

Conversion gain variation (Ta=+25C)

60 dB typ.

IM3

45 dBc min.

Local oscillator frequency stability (Ta= -40 to +60 C)

10.00 GHz nom.

Image rejection

45 dB min.

Output V.S.W.R.

2.5:1 max.

Power requirement

+12 to +24 V

Current

280 mA max.

Phase noise

-75 dBc/Hz @ 100 Hz

-80 dBc/Hz @ 1 KHz

-90 dBc/Hz @ 10 KHz

-110 dBc/Hz @ 100 KHz

*Depend on phase noise of the external reference.

Operating temperature range

-40 to +60 C

Storage temperature

-50 to +80 C

Humidity

100 %Rh (max)

Vibration

G=5 (f=50±2Hz, t=5 min, direction; X,Y,Z)

Shock

G=15 (direction; X,Y,Z)

RF input power

-10 dBm (@ CW)

Supply voltage

+24 VDC

Key Specifications

AL4XN	12.25 to 12.75 GHz 11.30 GHz Depends on external reference 950 to 1,450 MHz N-type
Frequency band	12.25 to 12.75 GHz
Input waveguide flange	WR 75 (Grooved)
Input V.S.W.R.	2.5:1 typ.
Noise figure (Ta=+25 C)	0.8 – 0.9 dB max.
Output frequency	950 to 1450 MHz
Conversion gain	55 dB typ. @ +25C 2 dB max. in any 50 MHz segment over frequency band
Conversion gain variation (Ta=+25C)	60 dB typ.
IM3	45 dBc min.
Local oscillator frequency stability (Ta= -40 to +60 C)	10.00 GHz nom.
Image rejection	45 dB min.
Output V.S.W.R.	2.5:1 max.
Power requirement	+12 to +24 V
Current	280 mA max.
Phase noise	-75 dBc/Hz @ 100 Hz -80 dBc/Hz @ 1 KHz -90 dBc/Hz @ 10 KHz -110 dBc/Hz @ 100 KHz *Depend on phase noise of the external reference.
Operating temperature range	-40 to +60 C
Storage temperature	-50 to +80 C
Humidity	100 %Rh (max)
Vibration	G=5 (f=50±2Hz, t=5 min, direction; X,Y,Z)
Shock	G=15 (direction; X,Y,Z)
RF input power	-10 dBm (@ CW)
Supply voltage	+24 VDC
