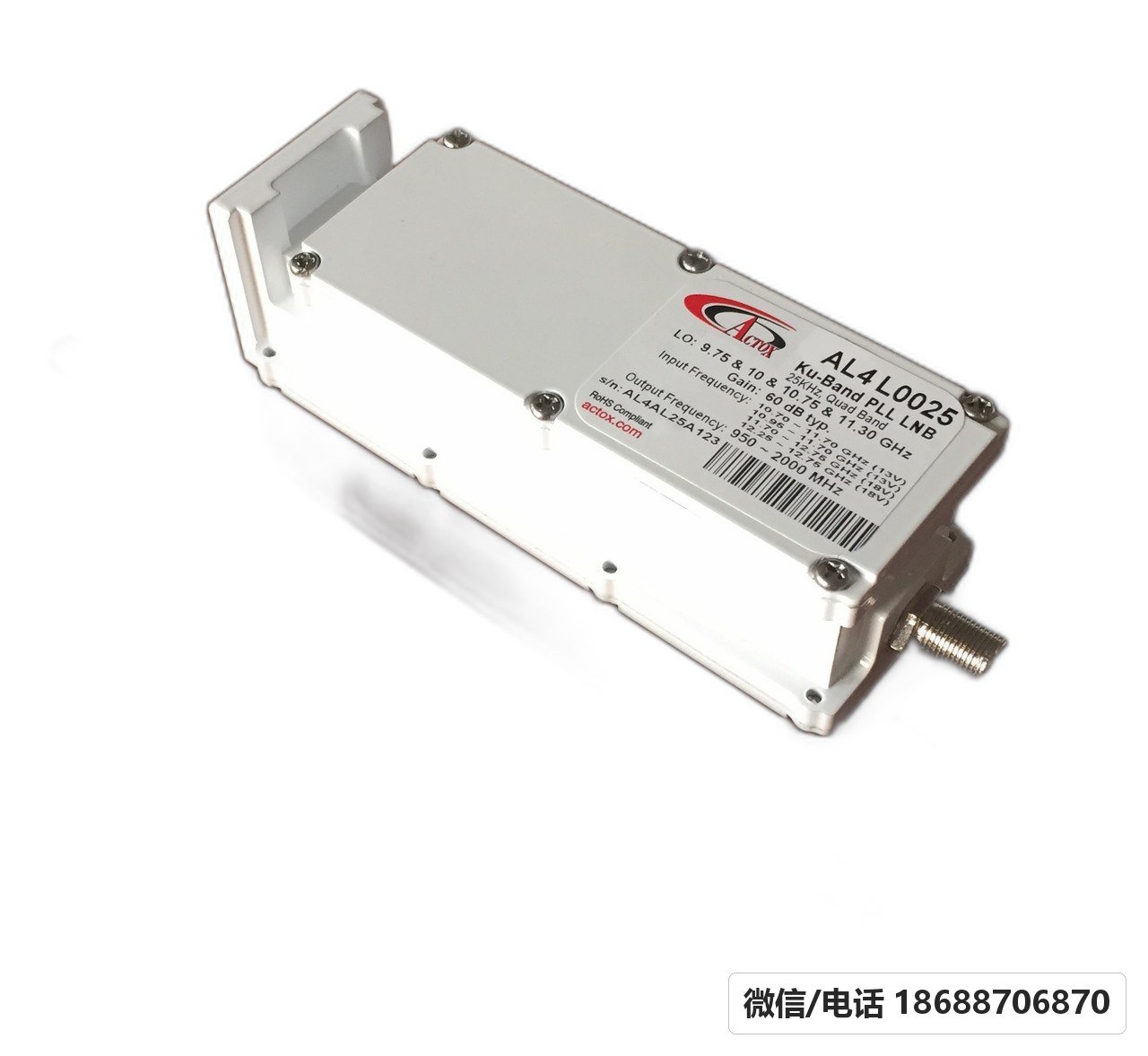

Actox AL4L0025 – 25 KHz stability 4-L.O. Ku-Band PLL LNB, F-Type

This unit features:

Output frequency 10.70-12.75 GHz

+/- 25 kHz Stability

Noise figure 0.8 dB typ.

RoHS compliant

Three year warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

AL4L0025

10.7-12.75GHz

9.75 / 10 / 10.75 /11.30 GHz

25 KHz

950 to 2,000 MHz

F-Type

Parameter

Value

Frequency band

10.70 to 12.75 GHz

Input waveguide flange

WR 75 (Grooved)

Input V.S.W.R.

2:1 typ.

IF frequency

950-2000 MHz

Conversion gain

60 dB typ.

Gain variation

0.4 dB p-p within 30 MHz & 4 dB p-p all band

Image rejection

30 dB min.

Output V.S.W.R.

2:1 max.

Power requirement

+12 to +24 V

Current

350 mA max.

Phase noise

-73 dBc/Hz @ 1 KHz

-83 dBc/Hz @ 10 KHz

-103 dBc/Hz @ 100 KHz

-113 dBc over 1 MHz

Operating temperature

-30 to +60 C

Storage temperature

-40 to +80 C

Supply voltage

+24 VDC

Key Specifications

Frequency band	10.70 to 12.75 GHz
Input waveguide flange	WR 75 (Grooved)
Input V.S.W.R.	2:1 typ.
IF frequency	950-2000 MHz
Conversion gain	60 dB typ.
Gain variation	0.4 dB p-p within 30 MHz & 4 dB p-p all band
Image rejection	30 dB min.
Output V.S.W.R.	2:1 max.
Power requirement	+12 to +24 V
Current	350 mA max.
Phase noise	-73 dBc/Hz @ 1 KHz -83 dBc/Hz @ 10 KHz -103 dBc/Hz @ 100 KHz -113 dBc over 1 MHz
Operating temperature	-30 to +60 C
Storage temperature	-40 to +80 C
Supply voltage	+24 VDC

Documents

• Datasheet / User Manual
