Actox AL2XN

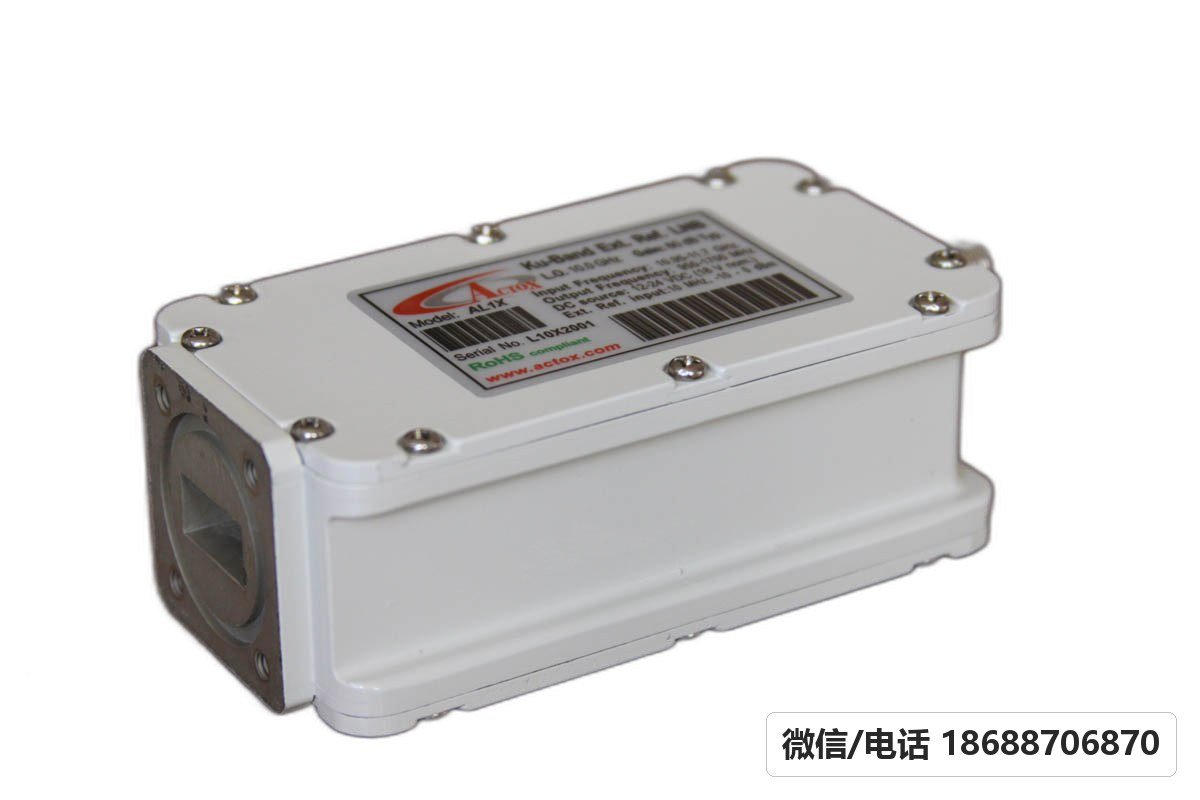

AL2XN – Actox Ext. Ref. Ku-Band LNB

This unit is a low noise amplifier and a block down converter (external reference) for use in KU-Band VSAT remote RF terminals

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

AL2XN

11.7 to 12.2 GHz

10.75 GHz

Depends on external reference

950 to 1,450 MHz

N-type

KEY FEATURES

–

External reference

–

Smallest package size and weight

–

N / F connector options (50/75 ohms)

–

RoHS compliant

–

Three year warranty

Specifications

Conversion gain

60 dB typ.

Input VSWR

2.5 : 1 typ.

IF connector

N- type

RF interface

WR – 75 Grooved

Phase noise

Ext. ref. dependent

L.O. stability

Locked ext. ref.

Ext. ref. input

IF output connector

Power supply

+12 – +24 VDC

Operating temperature

-40C – +60C

Dimensions (mm)

107 x 60 x 40

Gain flatness

4 dB p-p max.

Output VSWR

2.5 : 1 typ.

IF impedance

75 or 50 ohms

Leakage

-55 dBm max.

Noise figure

0.8 – 0.9 dB max.

Ext. ref. frequency

10 MHz

Ext. ref. level

-10 to 0 dBm

Current

280 mA max.

Storage temperature

-50C – + 80C

Weight (g)

380
