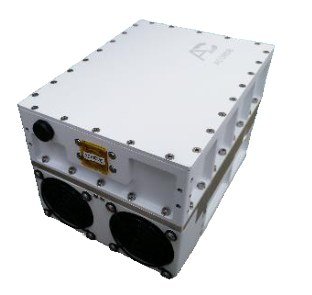

Acorde ACTX-Ka40W-E31-V5 Single/Dual Ka-band SSPB 40 W Zeus Series 29.0 – 30.0 GHz
Details Specifications — ACTX-Ka40W-E31-V5 LO frequency 28,000 GHz, 29.000 GHz The ACTX-Ka family of SSPBs is designed for the most challenging Ka-band professional & military satellite communication systems (ground, SOTP, SOTM, maritime, etc.). Late…
Description
Specifications — ACTX-Ka40W-E31-V5
| LO frequency | 28,000 GHz, 29.000 GHz |
The ACTX-Ka family of SSPBs is designed for the most challenging Ka-band professional & military satellite communication systems (ground, SOTP, SOTM, maritime, etc.).
Latest technology is applied to obtain the best power efficiency, phase noise, gain stability and linear power according to MIL-STD-188-164C. The ACTX-Ka family is a high reliability solution designed for harsh environmental conditions, with every single production unit fully tested in an environmental chamber and delivered with a complete factory acceptance test report.
Key Features:
- AC supply operation
- External and internal reference capabilities
- Standard M&C with serial port (RS-232/485) with optional Ethernet and SNMPv2
- High linearity performance and spurs rejection
- Low power consumption
| Standard freq. option | Ka-band output | L-band input | LO freq. |
| ACTX-Ka40W-E2-V5 | 29.5 to 30.0 GHz | 950 to 1450 MHz | 28.550 GHz |
| ACTX-Ka40W-E6-V5 | 30.0 to 31.0 GHz | 950 to 1950 MHz | 29.050 GHz |
| ACTX-Ka40W-E66-V5 | 30.0 to 31.0 GHz | 1000 to 2000 MHz | 29.000 GHz |
| ACTX-Ka40W-E31-V5 | 29.0 to 30.0 GHz 30.0 to 31.0 GHz |
1000 to 2000 MHz | 28.000 GHz 29.000 GHz |
- AC supply operation External and internal reference capabilities Standard M&C with serial port (RS
- 232/485) with optional Ethernet and SNMPv2 High linearity performance and spurs rejection Low power consumption Standard freq. option Ka
- band output L
- band input LO freq. ACTX
- V5 29.5 to 30.0 GHz 950 to 1450 MHz 28.550 GHz ACTX
- V5 30.0 to 31.0 GHz 950 to 1950 MHz 29.050 GHz ACTX
- V5 30.0 to 31.0 GHz 1000 to 2000 MHz 29.000 GHz ACTX
- V5 29.0 to 30.0 GHz 30.0 to 31.0 GHz 1000 to 2000 MHz 28.000 GHz 29.000 GHz <div class="tab
- content"
Technical Specifications
| Parameter | Value |
|---|---|
| Brand | Acorde |
| Series | Zeus |
| Product Type | Ka-band SSPB / BUC |
| Frequency Band | Ka-Band |
| Input Frequency | 1000 to 2000 MHz |
| Input VSWR | < 1.5:1 |
| Output Frequency | 29.0 to 30.0 GHz 30.0 to 31.0 GHz |
| Output VSWR | < 1.3:1 |
| Psat (typ) | 46.0 dBm |
| Plin | 43.0 dBm |
| Gain @ Plin | > 65 dB |
| Gain flatness | ±2.0 dB over whole BW ±0.5 dB over 40 MHz |
| Gain stability | ±0.25 dB @ constant T |
| Gain variation over temperature | ±1.5 dB ±2.0 dB @ option T |
| Power Supply | 85-265 VAC (47-63 Hz) |
| Consumption @ Plin | 250 W |
| External Reference | 10 MHz |
| Storage Temperature | -40 °C to +85 °C |
| Operating Temperature | -20 °C to +60 °C |
| Dimensions | 190 x 140 x 125 mm 7.5 x 5.5 x 4.9 in |
| Weight | 5.0 kg 11.0 lbs |
| Interfaces | 62IN12E12-14S-4-622 M&C (Ethernet/SNMPv2) as option 62IN12E12-8S-4-622 |
| Phase Noise | 100 Hz: -65 dBc/Hz; 1 kHz: -75 dBc/Hz; 10 kHz: -85 dBc/Hz; 100 kHz: -95 dBc/Hz |
| LO Frequency | 28.000 GHz 29.000 GHz |
Frequency Options
| Standard freq. option | Ka-band output | L-band input | LO freq. |
|---|---|---|---|
| ACTX-Ka40W-E2-V5 | 29.5 to 30.0 GHz | 950 to 1450 MHz | 28.550 GHz |
| ACTX-Ka40W-E6-V5 | 30.0 to 31.0 GHz | 950 to 1950 MHz | 29.050 GHz |
| ACTX-Ka40W-E66-V5 | 30.0 to 31.0 GHz | 1000 to 2000 MHz | 29.000 GHz |
| ACTX-Ka40W-E31-V5 | 29.0 to 30.0 GHz 30.0 to 31.0 GHz | 1000 to 2000 MHz | 28.000 GHz 29.000 GHz |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 14 × 19 × 12.5 cm |
| Brand | Acorde |
| Series | Zeus |
| Product Type | Ka-band SSPB / BUC |
| Frequency Band | Ka-Band |
| Output Frequency | 29.0 to 30.0 GHz 30.0 to 31.0 GHz |
| Input Frequency | 1000 to 2000 MHz |
| LO Frequency | 28.000 GHz 29.000 GHz |
| Psat (typ) | 46.0 dBm |
| Plin | 43.0 dBm |
| Gain @ Plin | > 65 dB |
| input VSWR | < 1.5:1 |
| output VSWR | < 1.3:1 |
| Power Supply | 85-265 VAC (47-63 Hz) |
| Consumption @ Plin | 250 W |
| External Reference | 10 MHz |
| Phase Noise | 100 Hz: -65 dBc/Hz; 1 kHz: -75 dBc/Hz; 10 kHz: -85 dBc/Hz; 100 kHz: -95 dBc/Hz |
| Operating Temperature | -20 °C to +60 °C |
| Storage Temperature | -40 °C to +85 °C |
| Weight | 5.0 kg 11.0 lbs |
| Dimensions | 190 x 140 x 125 mm 7.5 x 5.5 x 4.9 in |
| Interfaces | 62IN12E12-14S-4-622 M&C (Ethernet/SNMPv2) as option 62IN12E12-8S-4-622 |
