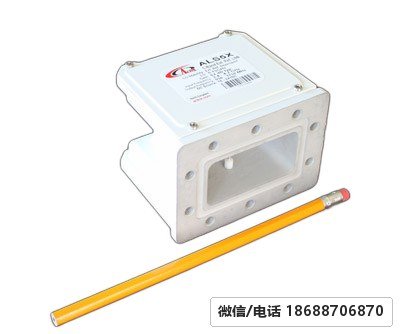

Actox ALS5XN

ALS5X – Actox Ext. Ref. C-Band LNB

This unit is a low noise amplifier and a block downconverter (external reference) for use in C-Band VSAT remote RF terminals.

KEY FEATURES

External Reference

Smallest size and weight

N/F connector options (50/75 ohms)

RoHS Compliant

Three-year Warranty

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

ALS5XN

3.4 to 4.2 GHz

5.15 GHz

Depends on external reference

950 to 1,750 MHz

N-type

Parameter

Value

Frequency band

3.4 to 4.2 GHz

Input waveguide flange

WR 229 (Grooved)

Input V.S.W.R.

2.5:1 max.

Conversion gain

62 dB typ.

Local oscillator frequency stability

5.15 GHz nom.

Power requirement

+12 to +24 V

Current

300 mA max.

Phase noise

Ext. Ref. Dependant

Output frequency

950 to 1750 MHz

Operating temperature range

-40 to +60 C

Storage temperature

-50 to +80 C

Output V.S.W.R.

2.5:1 max

Gain flatness

4 dB p-p max.

L.O. Leakage

-50 dBm max.

IF impedance

50 ohms, 75 ohms

Output 1 dB compression point

+ 5dBm min.

Weight (g)

500

Key Specifications

Frequency band	3.4 to 4.2 GHz
Input waveguide flange	WR 229 (Grooved)
Input V.S.W.R.	2.5:1 max.
Conversion gain	62 dB typ.
Local oscillator frequency stability	5.15 GHz nom.
Power requirement	+12 to +24 V
Current	300 mA max.
Phase noise	Ext. Ref. Dependant
Output frequency	950 to 1750 MHz
Operating temperature range	-40 to +60 C
Storage temperature	-50 to +80 C
Output V.S.W.R.	2.5:1 max
Gain flatness	4 dB p-p max.
L.O. Leakage	-50 dBm max.
IF impedance	50 ohms, 75 ohms
Output 1 dB compression point	+ 5dBm min.
Weight (g)	500

Documents

• Datasheet / User Manual
