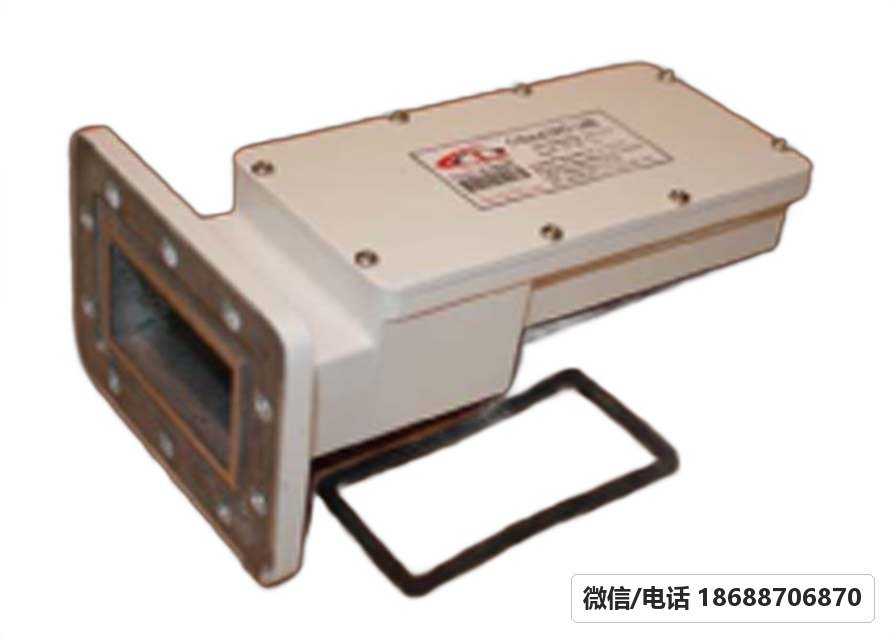

Actox AL60500N – 500KHz stability Insat C-Band DRO LNB, N-type

AL60500 – 500KHz stability Insat C-Band DRO LNB

This unit is a low noise amplifier and a block down converter for use in C-Band VSAT remote RF terminals

Model

RF Frequency

Local Frequency

Local Stability

IF Frequency

IF Connector

AL60500N

4.5 to 4.8 GHz

5.15 GHz

500 KHz

1,150 to 1,450 MHz

N-type

Frequency band

4.5 to 4.8 GHz

Input waveguide flange

WR 229 (Grooved)

Input V.S.W.R.

2.5:1 typ.

Conversion gain

65 dB typ.

Local oscillator frequency stability

5.15 GHz nom.

Power requirement

+12 to +24 V

Current

150 mA max.

Phase noise

-65 dBc/Hz at 1 KHz

-80 dBc/Hz at 10 KHz

Output frequency

1150 to 1450 MHz

Operating temperature range

-40 to +60 C

Storage temperature

-40 to +80 C

Gain flatness

5 dB p-p max.

Leakage

-45 dBm max.

IF impedance

50 or 75 ohms

RF input power

-10 dBm (@ CW)

Weight (g)

575

Dimensions (mm)

179.5 x 98.8 x 70

Key Specifications

Frequency band	4.5 to 4.8 GHz
Input waveguide flange	WR 229 (Grooved)
Input V.S.W.R.	2.5:1 typ.
Conversion gain	65 dB typ.
Local oscillator frequency stability	5.15 GHz nom.
Power requirement	+12 to +24 V
Current	150 mA max.
Phase noise	-65 dBc/Hz at 1 KHz -80 dBc/Hz at 10 KHz
Output frequency	1150 to 1450 MHz
Operating temperature range	-40 to +60 C
Storage temperature	-40 to +80 C
Gain flatness	5 dB p-p max.
Leakage	-45 dBm max.
IF impedance	50 or 75 ohms
RF input power	-10 dBm (@ CW)
Weight (g)	575
Dimensions (mm)	179.5 x 98.8 x 70
