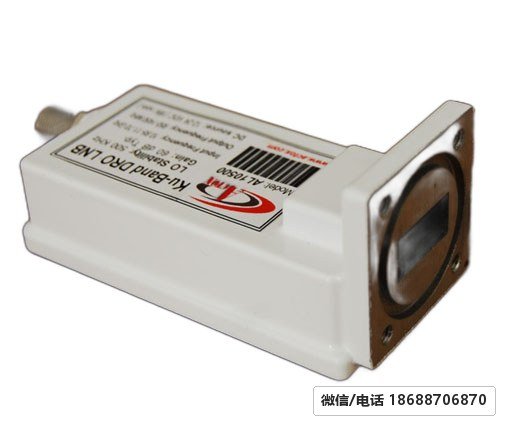

Actox AL30500N – 500KHz Stability Ku-Band DRO LNB, N-Type

AL30500 – 500KHz Stability Ku-Band DRO LNB

This unit features:

+/- 500 KHz stability

Smallest package size and weight

RoHS compliant

3 year warranty

Model

RF Frequency

Local Frequency

IF Frequency

Connector

AL30500N

12.25 – 12.75 GHz

11.30 GHz

950 to 1,450 MHz

N-type

Parameter

Value

Conversion gain

60 dB typ.

Input VSWR

2.5 : 1 typ.

IF connector

N-type

RF interface

WR – 75 Grooved

Phase noise

-75 dBc/Hz @10 KHz

-85 dBc/Hz @100 KHz

-100 dBc/Hz @1 MHz

Power supply

+15 – +24 VDC

Operating temperature

-40C – +50C

Dimensions (mm)

150 x 70 x 40

Gain flatness

1 dB p-p max.

Output VSWR

2.0 : 1 typ.

IF impedance

75 ohms

Leakage

-45 dBm max.

Noise Figure

0.8 dB max.

Current

350 mA max.

Storage temperature

-40C – + 60C

Weight (g)

150

Key Specifications

Conversion gain	60 dB typ.
Input VSWR	2.5 : 1 typ.
IF connector	N-type
RF interface	WR – 75 Grooved
Phase noise	-75 dBc/Hz @10 KHz -85 dBc/Hz @100 KHz -100 dBc/Hz @1 MHz
Power supply	+15 – +24 VDC
Operating temperature	-40C – +50C
Dimensions (mm)	150 x 70 x 40
Gain flatness	1 dB p-p max.
Output VSWR	2.0 : 1 typ.
IF impedance	75 ohms
Leakage	-45 dBm max.
Noise Figure	0.8 dB max.
Current	350 mA max.
Storage temperature	-40C – + 60C
Weight (g)	150
