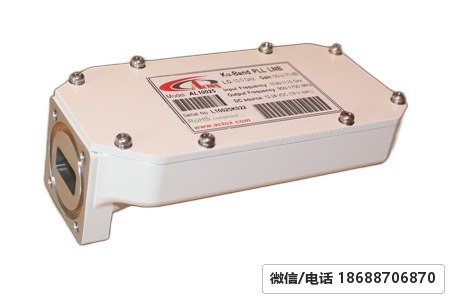

Actox AL20025N – 25 KHz-Stability Ku-Band PLL LNB, N-Type

AL20025N – 25 KHz-Stability Ku-Band PLL LNB

This unit features:

+/- 25 KHz stability

Smallest package size and weight

RoHS compliant

3 year warranty

Model

RF Frequency

Local Frequency

IF Frequency

Connector

AL20025N

11.70-12.20 GHz

10.75 GHz

950 to 1,450 MHz

N-type

Parameter

Value

Conversion gain

55 to 70 dB

Input VSWR

2.5 : 1 typ.

IF connector

N-type

RF interface

WR – 75 Grooved

Phase noise

-70 dBc/Hz @100 KHz

-80 dBc/Hz @1 KHz

-85 dBc/Hz @10 MHz

Power supply

+12 – +24 VDC

Operating temperature

-40C – +60C

Dimensions (mm)

125 x 60 x 22

Gain flatness

4 dB p-p max.

Output VSWR

2.5 : 1 typ.

IF impedance

75 or 50 ohms

Leakage

-55 dBm max.

Noise Figure

0.8 dB max.

Current

200 mA max.

Storage temperature

-40C – + 80C

Weight (g)

300

Key Specifications

Conversion gain	55 to 70 dB
Input VSWR	2.5 : 1 typ.
IF connector	N-type
RF interface	WR – 75 Grooved
Phase noise	-70 dBc/Hz @100 KHz -80 dBc/Hz @1 KHz -85 dBc/Hz @10 MHz
Power supply	+12 – +24 VDC
Operating temperature	-40C – +60C
Dimensions (mm)	125 x 60 x 22
Gain flatness	4 dB p-p max.
Output VSWR	2.5 : 1 typ.
IF impedance	75 or 50 ohms
Leakage	-55 dBm max.
Noise Figure	0.8 dB max.
Current	200 mA max.
Storage temperature	-40C – + 80C
Weight (g)	300

Documents

• Datasheet / User Manual
