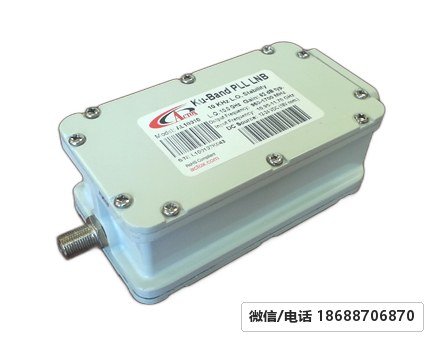

Actox AL10010N – 10 KHz-Stability Ku-Band PLL LNB, N-Type

AL10010N – 10 KHz-Stability Ku-Band PLL LNB

This unit features:

10 KHz L.O. stability

N / F connector options (50/75ohms)

Smallest package size and weight

RoHS compliant

3 year warranty

Model

RF Frequency

Local Frequency

IF Frequency

Connector

AL10010N

95-11.70 GHz

10.00 GHz

950 – 1700 MHz

N-type

Parameter

Value

Conversion gain

55 to 70 dB

Input VSWR

2.5 : 1 typ.

IF connector

N-type

RF interface

WR – 75 Grooved waterproof

Phase noise

-70 dBc/Hz @100 Hz

-65 dBc/Hz @1 KHz

-80 dBc/Hz @10 KHz

-95 dBc/Hz @100 KHz

Power supply

+12 – +24 VDC

Operating temperature

-40C – +60C

Dimensions(mm)

127.5 x 60 x 40

Gain flatness

4 dB p-p max.

Output VSWR

2.5 : 1 typ.

IF impedance

75 or 50 ohms

Gain ripple

1 dB p-p max per 36 MHz

Leakage

-55 dBm max.

Noise figure

0.8 dB max.

Current

250 mA max.

Storage temperature

-40C – + 80C

Weight (g)

350

Key Specifications

Conversion gain	55 to 70 dB
Input VSWR	2.5 : 1 typ.
IF connector	N-type
RF interface	WR – 75 Grooved waterproof
Phase noise	-70 dBc/Hz @100 Hz -65 dBc/Hz @1 KHz -80 dBc/Hz @10 KHz -95 dBc/Hz @100 KHz
Power supply	+12 – +24 VDC
Operating temperature	-40C – +60C
Dimensions(mm)	127.5 x 60 x 40
Gain flatness	4 dB p-p max.
Output VSWR	2.5 : 1 typ.
IF impedance	75 or 50 ohms
Gain ripple	1 dB p-p max per 36 MHz
Leakage	-55 dBm max.
Noise figure	0.8 dB max.
Current	250 mA max.
Storage temperature	-40C – + 80C
Weight (g)	350
